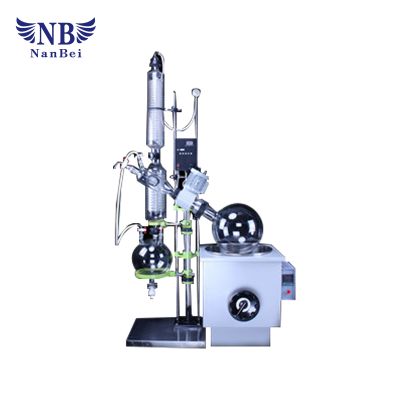

Laboratory Distillation Use Vacuum Rotary Evaporator

Min. Order: 1
Payment: T/T,L/C
Minimum Order: 1
Delivery: 7 DAYS
Origin: China
Packing: wooden Case
Inspection: Manual inspection
Sample Price: $1,000.00
Remarks: NANBEI Instrument
Contact Supplier

Favorite

Inquiry Basket

Product Attributes
Company Profile
Logistics and other information
    Product Details

    Distillation Use Price Laboratory Vacuum China Rotary Evaporator


    1.Feature and Description about Rotary Evaporator:
    • Stainless steel and aluminum alloy for bracket.
    • All glass components are borosilicate glass (GG-17).
    • Imported fluorine rubber and Teflon two-way combination seal.
    • Anti-vibration vacuum gauges show real-time vacuum.
    • Upright three-layer serpentine coil condenser.
    • Continuous feeding.
    • Collecting bottles has lean discharge port.
    • Latest integrated hand wheel valve, sealing is good.
    • Micro power switch.
    • LCD display temperature and speed.
    • Brushless DC motor.
    • Electric lifting bath.
    • High-quality 304 stainless steel bath.
    • Over-temperature protection function.
    • Anti-dry function.
    • Sudden power down protection funcation.

    3.Usage and Application about Rotary Evaporator:
    Rotary evaporator is the necessary basic instrument for chemical industry, medicine industry, institutions of higher learning and scientific research laboratory and other units, it is the main means for manufacturing and analyzing experiments when they do extraction and concentration .

    4.Technical data for rotary evaporator:

    ModelNBRE-5000
    Lifting motor power100W
    Heating power 8kw
    Rotating flask50L    Flange mouth:Φ125mm
    collecting flask20L    Flange mouth:Φ60mm
    Vacuum degree0.098Mpa
    Rotary speed0-120rpm/min
    Heating temp.0-400C
    Temp controlling accuracy±1C
    Glass temp range-80C to 250C
    Condenser sizeFeed valveRelease valveMainΦ160*840H(mm) DeputyΦ160*480H(mm)
    Didcharge valve15mm glass and lean discharge port
    Bath size/volumeΦ550*320H(mm) about 76L
    Lifting stroke0-180mm
    Voltage220V 50Hz
    (various power supply and plug can be customized)
