EVAPORATORS

EVAPORATORS





Traditional efficientprocessing systems for the treatment and disposal of waste water arecost-intensive and not sufficiently effective.

Vacuum evaporator to wastewater processing shows that it is possible to produce goods (e.g. in the galvanizationprocess) and to reduce the volume of waste water while at the same time cuttingthe burden on the environment.

The use of a vacuumevaporator is an advantage for the environment, and in practice results in areduction of current or expected residue disposal costs.

Vacuum evaporationtechnology is a process that has been used for decades by the chemicalindustry.

However, traditional distillationsystems require extremely complex installations and very high energy costs,which is why the evaporation process is uneconomical in most cases. On theother hand, vapour compressors are obliged to operate at high temperatures,leading automatically to corrosion and encrustations on the heat exchangers inthe absence of pretreatment, which again involves costs.

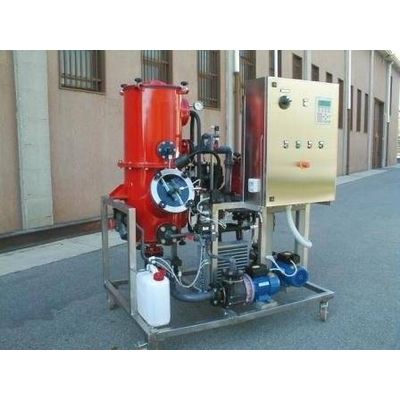

The structure of vacuumevaporators is based on the tried and tested technology of the heat pumpcombined with a vacuum, using an innovatory arrangement on the boiling andcondensation side to ensure an even more gentle distillation process, a higher yieldfrom the water, a higher degree of concentration and a significantly lowerconsumption of energy as compared with other products.

As is well known, waterboils at approx. 100u00b0C;the lower the ambient pressure, the earlier water will boil and evaporate,since the air resistance is lower. Under a vacuum (residual pressure) ofapprox. 40 mbar, the boiling point of water is only approx. 30u00b0C.

Boiling temperature plays amajor role in chemistry, the lower it is, the lower is the risk ofdecomposition in the case of many products. At the same time, encrustation isconsiderably cut back



.



METAL PROCESSING





Concentratingand cracking emulsions or degreasing solutions, e.g. after ultra-filtration

Concentrating of pickling solutions

Concentrating of phosphatising solutions

Concentrating of vibratory grinding waste water

Concentrating of die-casting residues (separating agents, lubricants, clycols)

Concentrating and recovery of hardening staffs from standing washers

GALVANISATION PROCESS



oncentrating and recoveryof electrolytes from swills (nickel, silver, copper...)

Concentrating and recovery of aggressive acids (chromic acid, sulphuric acid,...)

Concentrating and recovery of precious metals from swills

Concentrating of eluates from the regeneration of ion exchangers

Concentrating and recovery of diluted active solutions

FHOTOGRAPHIC, PRINTING,AND TEXTILE INDUSTRY



Concentrating of fixing,developing and bleaching solutions

Concentrating of pressure-roller and frame-washing water

Concentrating and recovery of dying and printing pigments from washing water

Concentrating and recovery of organic impurities from contaminated waste waters

Concentrating of adhesive or limes from washing water

PANTING PROCESSINGINDUSTRY



Concentrating and recoveryof paints from spray booths

Concentrating of phosphatising and degreasing solutions

PHARMACEUTICAL INDUSTRYConcentratingand recovery of organic impurities from contaminated waste watersLEATHER PROCESSING



Concentrating and recoveryof organic impurities from contaminated waste waters

Concentrating and recovery of aggressive acids

FOOD INDUSTRY



Concentratingof dairy waste water

Concentrating and recovery of sugar solutions

Concentrating of must to avoid adding sugar, in wine processing

Production of drinking water from sea water

WASTE LANDFILLS



Concentrating ofgravitational water e.g. after an osmosis reversal
