Tomato paste processing Plant/ketchup/sauce processing machine/ tomato paste dilution and packaging

We offer both tomato paste concentrate production line and ketchup distribution line.Details as follows:

1.tomato concentrate processing--from fresh tomato paste to 5-220L aseptic bag,shelf year 2 years



Lines including:fresh tomato lifting system, cleaning system, sorting system, crushing system, preheating and enzyme inactivation system, pulping system, vacuum concentration system, sterilizing system and aseptic filling system-aseptic bag



2.Ketchup packing production line - from concentrated tomato sauce to small package(sachet pouch ,tin can,botle etc.)

The extraction pump - formulations tank - sterilizing machine - can (bottle) washing machine - filling machine - capping machine (Capper) - tunnel spray sterilizing machine - drying machine - printer - packing



escription

Final Products

Our Service

FoodMachinery Expert

Related Products

Quick Details



Condition:

New

Place of Origin:

Shanghai, China (Mainland)

Brand Name:

sh-jump

Model Number:

cts091402

Type:

turn key solution

Voltage:

380V

Power(W):

per machine capacity

Weight:

varied

Dimension(L*W*H):

adjusted based on your factory design

Certification:

CE ISO

Warranty:

12 Months guarantee,long-life service

After-sales Service Provided:

Engineers available to service machinery overseas

Production capacity:

0.5-500T/H

Material:

SUS304

Function:

whole processing line

Usage:

tomato paste processing and distribution

Raw material:

fresh ripe tomato

Advantage:

life-long after-sales Service

Packaging & Delivery



Packaging Details:Standard export package.If customer have specail requirement,we will do as customer require

Delivery Detail:60-90days

General

We offer both tomato paste concentrate production line and ketchup distribution line.Details as follows:

1.tomato concentrate processing--from fresh tomato paste to 5-220L aseptic bag,shelf year 2 years



Lines including:fresh tomato lifting system, cleaning system, sorting system, crushing system, preheating and enzyme inactivation system, pulping system, vacuum concentration system, sterilizing system and aseptic filling system-aseptic bag



2.Ketchup packing production line - from concentrated tomato sauce to small package(sachet pouch ,tin can,botle etc.)



The extraction pump - formulations tank - sterilizing machine - can (bottle) washing machine - filling machine - capping machine (Capper) - tunnel spray sterilizing machine - drying machine - printer - packing



Whatsapp/Line/Wechat/Mobile: 008615901792807 Welcome any inquiry!

Detailed Images



Spray cleaning machine

Main characteristic:

1 Used to wash freshGuava, tomato, strawberry, mango, etc.

2 Special design of surfing and bubbling to ensure a through cleaning and lessening the damage to the fruit as well.

3 Suitable for many kinds of fruit or vegetables, such as tomatoes, strawberry, apple,mango,etc.

Motor Power: 3KW



homogenizer

Applied to the refinement or emulsification of juice, jam, beverage.

With frequency conversion control and centralized control cabinet

Rated handling capacity 1T/H

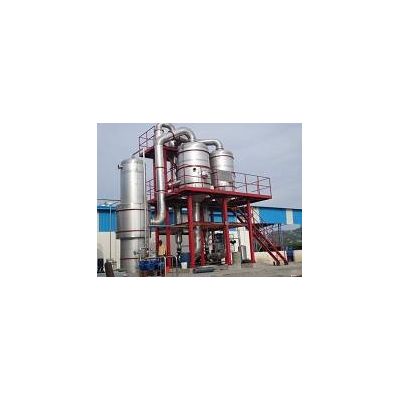

Triple effect vacuum evaporator

Specially for the fruit paste ,syrup and other high-viscosity products. Continuous low-temp evaporation under vacuum to ensure the least loss of the efficient substance insides. Incorporated Italian technology and made as per Europe stand. Have more experienced in producing the unit. More than 70 lines in china and world wide run smoothly. The processing capacity ranging from 300L-35000L water evaporated per hour by means of single effect or double effect or triple effect vacuum evaporator

The unit is composed of tubular heater, vacuum evaporation chamber, multi-stage condenser, pumps, PLC control system, valves, meters& gauges, operation platform, etc.

Compacted structure,stable running,high efficiency and energy-saved performance.



CIP clean system

Semi-automatic cleaning system

Including acid tank ,base tank ,hot water tank, heat exchange system and controlsystems. Cleaning all the line.



Power:7.5KW



Tube in tube sterilizer

Main Features

we take advantages of the comprehensive and technical cooperation with the Italian company partner, now in fruit processing, cold breaking processing, multi effect energy saving concentrated, sleeve type sterilization and aseptic big bag canning has made domestic and unmatched technical superiority. We can provide the entire production line processing 500KG-1500 tons of raw fruit dailyaccording to the customers.



Turnkey solution. No need worry if you know little about how to carry out the plant in your country.We not only offer the equipment to you,but also provide one-stop service, from your warehouse designing (water, electricity ,staff) , worker training, machine installation and debugging, life-long after-sale service etc.



Our company adheres to the purpose of "Quality and Service Branding", after many years of efforts, has set a good image in the domestic ,due to superior price, and excellent service , at the same time, the company products are also widely infiltrated into Southeast Asia, Middle East, Africa, South America, Europe and many other overseas markets.

Fresh tomato treatment: 0.5-500 tons/hour of fresh fruits(per customer requirement)

Tomato paste output: 0.1-100 tons/hour(depends on fruit type, brix,etc.)

Raw materials: fresh fruit(pineapple, mango, guayaba, papaya,tomato) but also can be shared with apricot and chili

The final product: paste, sauce, and fruits jam

Packing: bags, PET bottle, glass bottle,jar.etc

we also can do OEM according to customer request.

The 100% natural tomato paste can always be large supplied by us
