Belt Vacuum Condensation Continuous Tableting Pelletizer

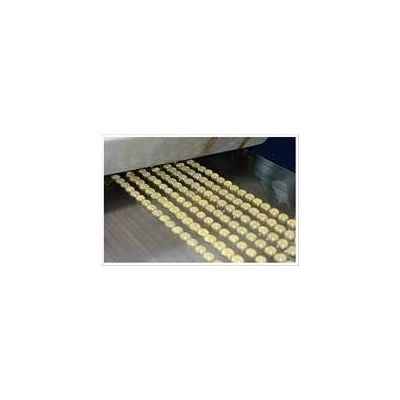

The equipment is an enclosed container which is in vacuum state during working. Several layers of tetrafluoroethylene guide belts are arranged in the container. A cooling plate is arranged below the guide belts. Hot melt material flow in an upstream procedure is uniformly distributed or pelletized on each layer of guide belts (tetrafluoroethylene) through a distributor. Hot melt material has adjustable distribution thickness and can be uniformly distributed onto the surfaces of the guide belts. The guide belts drive the hot melt material to move forward. Heat is conducted by the cooling plate, so that the hot melt material is quickly cured and shaped into tablets or particles. The material is scraped by scraper at the discharge end of the container, and is discharged from a vacuum discharge cabin. If material needing to be pulverized can be pulverized in the vacuum cabin as required, dust pollution can be avoided.



Application scop



Types

Application range



Organic matters

Maleic anhydride, paraffin, asphalt, caprolactam, m-phenylenediamine, nitrochlorobenzene, catechol, paradichlorobenzene, trimellitic anhydride, 1,8-diaminonaphthalene, diaminodiphenylmethyl methane, N-phenylmaleimide, polyethylene glycol, neopentyl glycol, polyethylene wax, polyvinyl acetate, TMP, paraformaldehyde, triphenyl phosphate (TPP), MS, methyl chloride, etc.



Inorganic matters

Sulfur, sodium sulfide, rongalite, aluminum sulfate, calcium chloride, caustic soda, sodium bisulfide



Fine chemicals

Anti-aging agents such as 4010NA, 4020, RD and DTPD, plasticizers such as Aflux, Aktiplast, Z-80, plasticizer A and plasticizer B, RC-series organic cobalt salt, MOCA, leather treating aid, surfactant, plastic aid, rubber aid, organic palladium salt and protective wax



Grease chemicals

Stearic acid, salts of stearic acid, fatty acid (alcohol), salts of fatty acid (alcohol), glyceride, DMP-100, ester gum, palm oil, etc.



Resins

PF resin, tackifying resin, terpene resin, abietic resin, phenolic resin, polymerized rosin, epoxy resin, polyamide resin, petroleum resin C5-C9



Others

Hot melt adhesive, emulsification bomb, gelatin, beewax, sodium fluosilicate, thermosetting molding compound, rubber-plastic material, decompression kettle bottom material, electronic grade material, MDA, PTPT, nitro-compound fertilizer, PP, high-concentration compound fertilizer, etc.
