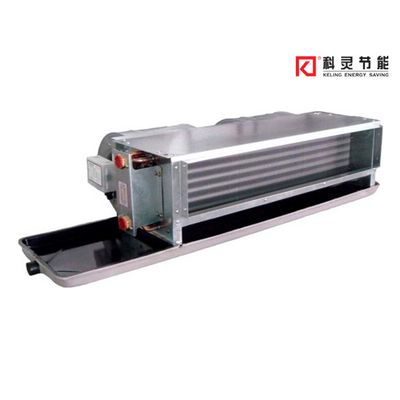

cooling heating fan coil unit

FRAME AND STRUCTURE
Panels & frame are made of galvanized steel, properly punched and punched for fixing both accessories and the unit itself;

COOLING OR HEATING COIL
Coils are made of seamless tubes expanded into hydrophilic aluminum fins in continuous block. The connections have brass headers with female fittings and provided with easily accessible vent and drainage valve;

Fan and Motor
Fans are composed of double suction centrifugal fans with aluminum impellers and 3-speed fan motors. Each motor assembled is dynamically balanced;

DRIP TRAY
The drip trays are made from sheet metal treated with polyester powder coating to ensure the resistance to atmospheric agents;

FILTER
Easily removable filter is made of filtering honeycomb polypropylene fabric and supported by an aluminum frame. The filter is installed on the units with plenum only;

ELECTRICAL CONNECTION BOX
All electric wires are connected to enclosed electrical terminal block, situated on the same side of the water connections;

OPTIONAL
 3 speed switch (High-Middle-Low)
 Mechanical or Digital type thermostat
 Motorized valve
