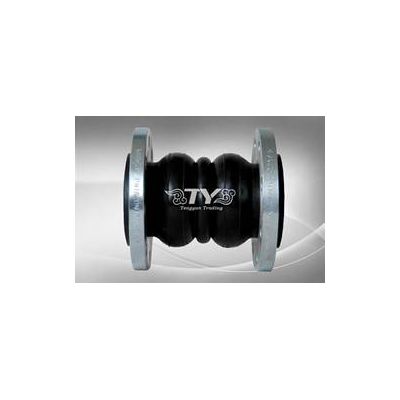

double ball Rubber Compensator

Rubber compensator is also called rubber expansion joint, which is generally made of waveform rubber compensation parts and metal flanges. Loose sleeve structure is used for the flange and the rubber compensation part is composed of rubber surface and the inner layer made of strong fiber or steel strip or steel wire. The reinforced fibers or steel strip (wire) layer is extended to the rubber flange part inside which there is a hard steel skeleton.

Good displacement compensation capability being able to carry out axial, lateral and angular displacement.

- Low noise, good vibration reducing and corrosion resistant capacity.

- High pressure resistance, good elasticity, excellent displacement effect and simple installation.

- Nominal Diameter: DN30-DN1200 (mm)

- Design Pressure: 0.1~2.5 (Mpa)

- Design Temperature: -15 ~115 or -30 ~250 for special design

- Connection: Flange
