Product Description

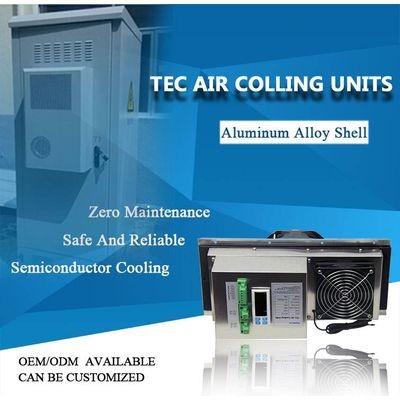

TEC air conditioner series adopts the high reliability thermoelectric cooling module,when both ends of the TEC's chip through the DC ,one end is for cooling and another end is for heating , the temperature difference of the two ends can be as high as 68 Degrees Celsius. TEC air conditioner integration into the efficient heat pipe radiating technology for efficient cooling. TEC refrigeration currently becoming the mainstream choice for intelligent battery management technology, especially mobile communications base station outdoor heated cabinet control, provide the high efficiency and low energy consumption environmental solutions for communications base stations, and the engine room of the energy system.
Product Feature
1.Compact design
2.High reliable design
3.DC power supply
4.Precise temperature control
5.RoHS compliant
Product Specification / Models
SDC2-300
SDC2-200
Application / Models
Widely used in telecommunications, broadcasting, electricity, automation and other industries indoor and outdoor enclosures, battery compartment's radiating demand.
Other Information
Semiconductor cooler is made by using semiconductor materials' Peltier effect, when the direct current electricity through the thermocouple which composed by two semiconductor materials, one end is for endothermic and another end is for exothermic. TEC includes P-type and N-type (group), they are connected together through the electrode, and sandwiched between two ceramic electrodes; when a current flows through the TEC, will spread the heat which generated by the current from one side of TEC to another side, come into being "hot" side and the "cold" side of the TEC, this is the heating and cooling principle of TEC.
