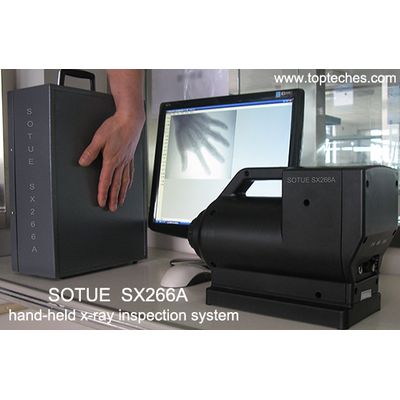

Portable x-ray inspection system, medical portable x-ray machine, luggage scanner, parcel scanner

Application:
It is used for explosive & suspicious dangerous goods inspection, it can be installed in helicopters, police cars, etc., widely used in Customs, public security, troops, police, ambulances, post offices, jails and other security departments for explosion scene & postal parcel security checks and for bone-setting immediate medical diagnosis inspection etc.. Industrial inspection. Medical inspection. Parcel and Baggage Security inspection.

ModelSX266A products have been exported to Brazil, France, Nigeria, Spain, Germany, Nepal, Vietnam, the United States, Congo, Kenya, Russia, Thailand, Iraq, India, Italy, Malaysia, Indonesia & Turkey for the local customers' uses, we have provided design and OEM production for some customers in the United States, Japan and Europe for more than 15 years.

Function:
1. Software platform, easy to operate it. Multi-function image processing system. Image database to facilitate storage and retrieval. Battery is applicable to a variety of working environment. Rechargeable battery, 220V and a car cigarette lighter power supply can work. Small size, strong penetration force & long life. Data transmission network to facilitate the exchange of information (optional).

2. Software:
Image enhancement, contrast adjustment, image overlay and adjust the brightness contrast. Image to be enlarge & reduced. Deal with the image part to be enlarged and narrowed. Database to store images, pseudo color and microwave processing. Image to be fronted and reversed, image profile to be processed. It can provide outstanding threat detection and can show the threat image projection.

Technical data:
1.  X-ray dose: 3 mR per pulse, every pulse to penetrate 50mm thick aluminum plate, 5mm thick steel plate ( distance ≥ 300mm ).  2.  X-ray sources: 6.5 Kg.  Image Acquisition: 3.0 Kg. Resolution: 768 x 512.  Pixels: 0.6 ~ 0.7. Pulse width: 100 ns.  3.  Bit rate: 8 Bits. Image acquisition size: 200 x 270mm. Visual field: 260 x 350mm.  4.  Pulsed light: 1 ~ 5 times /second. Output voltage: 80 ~ 150KV. Power supply: 29V rechargeable battery or power supply: 110V, 220V(±10%), 50/60Hz. 5. X-ray dose conforms to Chinese National Standard: GB9706.12, it is safe to healthy human.

Technical standards:
European CE and EMC international security standard certificates. Conform to FAA 3-gun testing standards and NILECJ-0601-00 safety standards. Conform to ECAC international security standard.
