Light-Duty Conveyor Belts

 Light conveyor belt by the special treatment of polyester filament fabric as bearing skeleton, single-sided or double-sided coated rubber or PVC, PU, PE for loading and surface or the driving surface of composite, with high strength, extension, flexure, wide working temperature, stable operation, long service life. Mainly used in food, tobacco, electronics, printing, packaging, textile and other light carrier material conveying; food, tobacco, electronics, printing, packaging, textiles, printing and dyeing, chemical, postal, tanning, metallurgy, etc. contained in the material conveying; chemical industry, postal services, building materials, metallurgy and other heavy material conveying.

PU conveyor belt has the common traits of high tensile strength, good bending, lightness,
thinness and toughness. It also has the outstanding traits of anti-germ,
wear-resistance, oil-resistance, nonpoisonous and sanitary, and easy to clean.
All of these conform to the management requirement of conveying non-packed food.

PE conveyor belt has the common traits of high tensile strength, good bending, and
stable running. It is also nonpoisonous and sanitary, easy to clean, and has smooth
surface. It can touch with food directly. It is the ideal matching equipment
of deep-processing industry for tobacco, food, meat and fishery, fruit and vegetable.

conveyor belt green for general use; white or transparent complies with the food sanitation standards; black and dark green with antistatic requirements, volume resistance is less than or equal to 108 ohm cm.
The conveyor frame layer has at least one to two layers of polyester filament with rigid weft knitted fabrics, special requirements can be made of soft fiber;
The rubber abrasion degree is less than or equal to 0.05cm3/1.61km; polyester filament fabric tensile strength more than 1250kgf/cm2; the tensile elongation is less than or equal to 20%;
The width of conveyor belt width over production range, using cold glue bonding;
The special case of the joint can adopt steel buckle connection;
The above is a regular product, special requirements please come to sample processing

Features:
1) Mainly suitable for conveying light-weight materials in food, tobacco,
electronic, printing, packing, textile and other industries
2) For conveying medium-weight materials in food, tobacco, electronic,
printing, packing, textile, dyeing, chemical, leather and other industries
3) For conveying heavyweight materials in metallurgical, building material,
post chemical and other industries

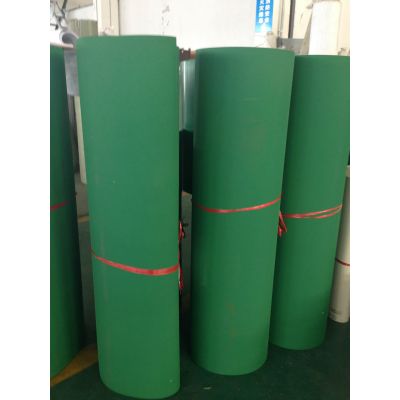

4) The green belt is for general purposes
5) The white or transparent ones meet the food sanitation criterion
6) The blackish green or black ones meet static electricity conducting
requirement
7) Volume resistance: ≤108ohm
8) The frame layer consists of at least one or two layers of braided
polyester fabrics with rigid weft. For special requirements, the soft fiber
can be adopted
9) Abrasive resistance of nylon base: ≤0.05cm3/1.61km
10) Braided polyester thread fabric tensile strength: ≥1,250kgf/cm2
11) Breaking extensibility: ≤20%
12) The width of the conveyor belt exceeds the production width
13) The way of bonding is cold gluing
14) Steel buckle joints can be adopted in special cases
