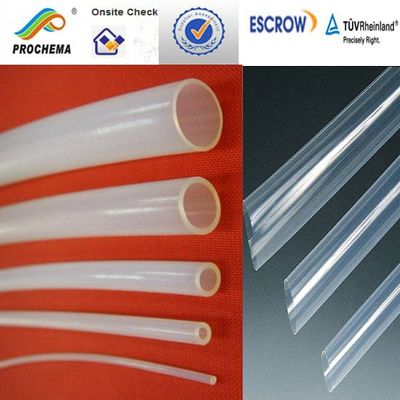

ETFE tube, ETFE pipe

Product Description   Skype ID michaelprochema   (kiu748 at 163 . com)

ETFE tube is made from ETFE resin and prepared by the technology of thermoplastic extrusion. It can be used at from -200 to 165 for continuous use and has superior mechanical strength than PTFE, PFA and FEP. Its electric insulation and radiation resistance properties are good. It is used as cable sheathing, wiring inside computers in nuclear power plant, etc. It conforms to the enterprise standard of Q/GHDA 10- 2007.......

Product Feature

Superior mechanical toughness
Excellent abrasion/impact resistance
Radiation resistant
Low heat shrink recovery temperature range 360ºF (185ºC) - 420ºF (215ºC)
Gamma sterilizable
Continuous working temperature of 300 °F (148°C)
Good resistance to stress cracking
Available in multiple colors
Medical Class VI approved

Application / Models

Applications


1. Wire and cable insulation, anticorrosive equipment, sealing materials, valve bushing, and chemical container.

2. Suitable for production of corrosion-resistant parts, reducing wear resistance parts, seals, insulation and medical equipment parts.



Aerospace: ETFE is used to extrude convoluted tubing that serves as a flexible conduit to protect wires, cables and fiber optics from abrasion due to its mechanical integrity, which meets 81914 Mil Spec certification. The resin can be utilized in tubing form for fluid transfer applications that require excellent chemical, abrasion and radiation resistance. ETFE is non-flammable and resilient in a wide range of temperatures, ranging from low temperatures to 300ºF (148ºC).
Automotive: ETFE is excellent for wire harness insulation due to its dielectric strength. It is also highly lubricious, providing dry lubrication solutions for a variety of applications which may also require abrasion resistance. The resin can withstand wide temperature variances with a working temperature range of up to 300ºF (148ºC). ETFE is chemically resistant for critical fluid transfer, possesses UV resistance and can be produced in a variety of shapes and customized options.
Critical Fluid Transfer: The chemical resistance, mechanical integrity and abrasion resistance of ETFE are ideal for critical fluid transfer. It can handle a wide range of acids, bases and solvents. The tubing can be formed into unique shapes post-extrusion for maximum flexibility in design requirements.
Electrical: ETFE provides durable electrical insulation (Dielectric Strength: 1800 volts/mil) as well as chemical resistance. These attributes serve it well in multiple extruded forms at high continuous service temperatures up to 300ºF (148ºC).
Fiber Optics: Our ETFE Convoluted Tubing (Mil Spec 81914) often houses and protects delicate fibers as it is very abrasion resistant. ETFE provides a durable jacketing material that easily slides over fiber optics without causing damaging. The material is UV and chemically resistant while having the ability to operate in a variety of extremes temperatures up to 300ºF (148ºC). ETFE can be chemically etched to offer accelerated bonding ability. This material can also be formed into shapes and multi-lumens, allowing multiple channels of fibers to be encapsulated in one OD.
General Industrial: ETFE is a highly lubricous fluoropolymer, positioning it as an ideal material for analytical and chemical transfer applciations. ETFE has a unique combination of characteristics that allow it to be manufactured in long continuous lengths. This is ideal for air sampling technologies that need tubing to support their instrumentation and won't degrade when exposed to caustic chemicals.
Oil & Gas: ETFE has excellent heat resistance and mechanical integrity at working temperatures of up to 300ºF (148ºC). The material is also a good insulator when utilized as wire insulation or a splicing aid, providing added abrasion resistance. The material also can be made into a heat shrinkable form for specialized applications.
Medical: ETFE may be sterilized using gamma, EtO, e-beam, or autoclave sterilization which makes it a versatile material in medical applications. ETFE can be manufactured in a variety of extruded products including custom sizes, profiles, and multi-lumens.
In addition, ETFE can be sourced with flares, flanges, draw downs, drilled holes, or a combination of more than one Optimized Tubing Solution.

Other Information

Properties of ETFE:

Item Value Unit
MFR 6-10 G/10MIN
MELTING POINTC 260-270 C
RELATIVE DENSITY 1.74 g/cm³
TENSILE STRENGTH 42-47 MPA
ELONGATION AT BREAK 300-400 %
