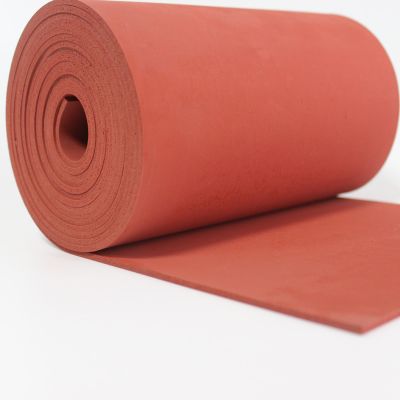

silicon rubber sheets

Product Description

Performance Parameter Test Standard
Tensile Strength 3.0 M pa ASTM D412
Breaking Strength 25 K n/m ASTM D1458
Elongation 300% ASTM D412
Hardness 10~40 Shore A ASTM 2240
Temperature Range -60~260 C En344
Density 0.6~0.9 g/cc ASTM D792
Thermal Conductivity 0.9 w/m*k ASTM D5470
Breakdown Voltage 25 K V ASTM D149
Notes: 0.6~0.9 g/cm3 = 0.0216~0.0325 Lb/in3 -60°C~260°C= -140°F ~500°F

Product Feature

Perfect Heat-Resistance Printing Industry---heat transfer machine

Soft and Elastic Architecture Industry & Machinery Industry

Insulating Electronic & Electrical Industry

Flame Retardant Anti-Burning Agents

Anti-oil & Waterproof Gasket, Sealing Parts

Weather Resistance Outdoor use material

Product Specification / Models

[Size Specification (mm)]

Min Length: Unlimited Max Length: Unlimited

Min Width: Unlimited Max Width: 1500

Min Height: 0.8mm Max Height: 30mm

[Standard Size (mm)]

[Specification]:

290*380*(5-15) 380*380*(5-15) 400*600*(5-15) 500*500*(2-30)
500*600*(5-15) 600*800*(5-15) 1000*1000(5-12) 1000*1200*(5-12)
1000*1500*(3~15) 1500*1500*(3~15);

[ Standard Roll Size]

1m wide * 10m length * (0.8-15mm)

1.2m wide * 10m length * (0.8-15mm)
