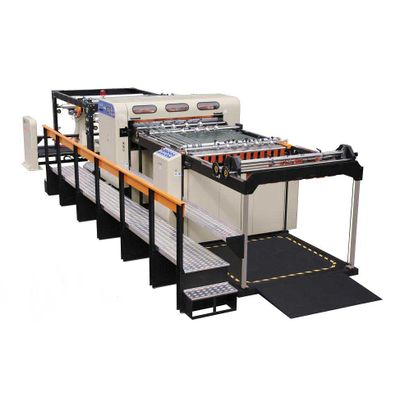

Roll to sheet cutting machine CHM-1400/1700/1900

Parameters:

High precision speed sheet cutter was widely used for cutting paper, like kraft paper, writing paper, art paper, laser paper, aluminum foil paper and board. CHM machine absorb euro and Taiwan technology, adopt servo motor driving, easy operate by touching screen, which those features makes our machine high precision and high speed and became famous brand of the market. MAIN TECHNICAL PARAMETER cutting type: top rotary knife, bottom knife fixed Reference weight of cutting-paper: 60-550GSM Cutting accuracy: ±0.5mm. Max.cutting speed: 300sheets/min Max.cutting meter speed: 300m/min Cutting length range: 450-1450mm Max.scroll diameter: Max 1800mm(71") Min.scroll diameter: Min 1400mm(55") Paper-piling height: 1300mm Air Pressure: 0.8Mpa Main Power Supply: AC380V/220V×50HZ Paper-ping height: 1300mm Max.paper-cutting width: 1400mm/1700mm/1900mm Gross weigh: 12000kg/13000kg/14000kg
