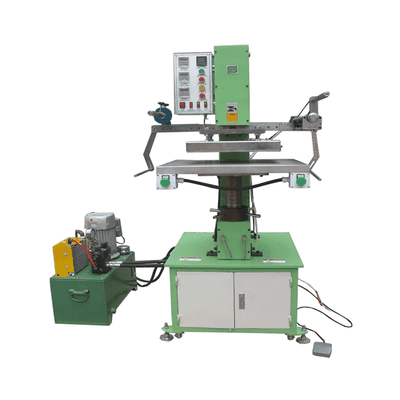

Hydraulic hot foil stamping machine

Hydraulic embossing stamping Machine //Structure

Working table

High strength Steel plate , size: 480*600mm.

Stamping Head drive

Hydraulic drive

Foil collecting method

 Motor-drive , Collecting time adjustable

Max Pressure

20T

Hydraulic embossing stamping machine //Usage and characters

Guide

• Gilding - paper, leather, wood, plastic,
• Baked - wood products, baked painting, gift box packaging;
• Embossing - paper, leather, cloth.
• Flat-object stamping machine with large-pressure, Suitable for stamping on invitation letter, card. Leather, wooden gift, Paper package, Plastics film, Electron products;
• Manual. Automatic feed foil, automatic temperature controlling ensures stamping quality.
• Because of large pressure, It is suitable for gilding and baking Impression on leather, paper, wooden materials.
• Hydraulic drive, pressure more large.

Hydraulic embossing stamping Machine //Parameter

Technical parameters

HH-TC3040LP

HH-TC4040LP

• Hot plate area:300 ×400 mm
• Working table area:480 ×600mm
• Max printing pressure:20,000 Kg
• Up and down distance:100mm
• Heat wattage: 6×500W
•  Foil in feed: Motor Drive
• Temperature adjustment:0-300oC .

• Hot plate area:400 × 400 mm
• Working table area:480 ×600mm
• Max printing pressure:20,000 Kg
• Up and down distance:100mm
• Heat wattage: 6×500W
• Foil in feed: Motor Drive
• Temperature adjustment:0-300oC .

Works supply

• 110V-220VPower supply;
• 46# Hydraulic oil

Package list

• Size: 1.06*1.03*1.80m
• Gross weight: 650kg;
• CBM: 1.96524

• Size:0.75*0.55*0.83m
• Gross weight: 85kg;
• CBM: 0.342375

H.S.Code

8443198000

Certificate

CE
