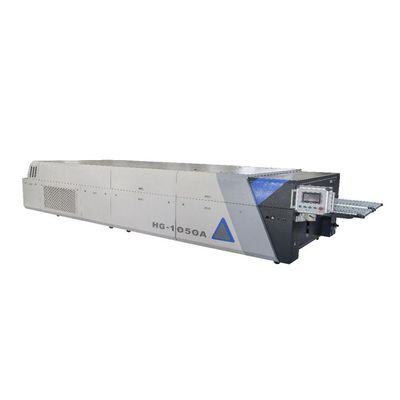

UV&IR conveying belt dryer

I. Introduction:
The machine has been developed on the basis of advanced technology which can offer nice drying effect for UV and solvent ink. It has reliable performance on curing effect and energy saving and environmental protection.

UV curing mechanism:
UV curing lamps adopting digital power control. you can choice suitable working power of UV lamp freely according to your actual printing requirement. It has advantage of low power consumption and working temperature.

IR drying mechanism:
Using hot air circulation drying method, unique design can reduce heating lost and electrical power consumption.
The Max drying temperature can reach 160 degree.

Cooling mechanism (Optional):
Adopting industrial compressor to produce constant spraying of cooling air which can cool quickly the sheet surface and accelerate rapid solidification of ink layer. Preventing sheet sticking and producing ink odor.

Model:

1. KSH800    Max. conveying width(mm): 800   Conveying speed(m/min): 5-50

2.KSH1020  Max.conveying width(mm): 1100    Conveying speed(m/min):5-50
