Calendar wire binding machine DCA520

Product Description

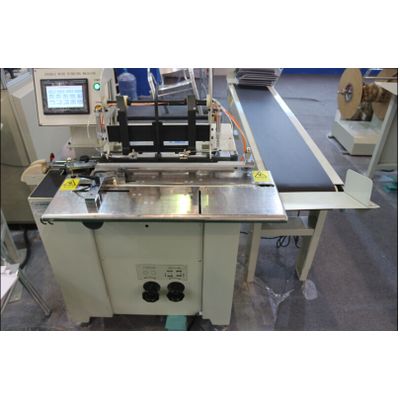

Double Wire Binding Machine DCA-520

The machine is used for binding double wire books,notebooks,calendars and so on.It has
The functions of automatic cutting,counting loops-counting,skip binding and closing.It's your best choice for double wire bookbinding.

Advantages:
Controlled by PLC.Easily to setting and adjusting.
Designing and manufacturing for normal wire and paper,so the machine is very efficiently and reliably.
By changing the individually size closing molds various loops diameters can be processed,and the changing of the molds is fast and easy.
Optional hanger attachment
Technical Data
Speed 1000 volume/hour
Air Pressure 5-8 Kgf
Wire Diameter 1/4''-3/4''
Workbench Diameter 680*310mm
Power 1PH 220V 50/60HZ(other voltage on request
Dimension Main machine 780 *730*1150 mm
Feeding reel 600*500*1320mm
Net weight 300Kg


Pay attention to :
DCA 520 have one mold , not include Calendar hook,if you need more size ,you should buy mold, We suggest you one machine produce one size will be better for you ,as it can enhance your efficiency.
Voltage specification : 1PH 220V 50/60HZ (other voltage on request )
Calendar appliance should be separate purchase.
We offer good after -sales service.
