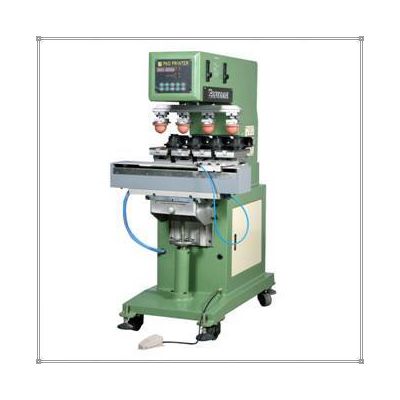

Sealed Ink Cup Pad Printer

Product Description



Sealed Ink Cup Pad Printer with the latest nano-technology oil cup made of tungsten steel cutting ring, the surface hardness up to HRC63 degree, with high wear resistance, can withstand nearly 300 million times the friction that this section of the machine than the traditional oil pan machines more environmentally friendly and more fuel efficient. Color printing machine is electronic, plastics, toys and other products for monochrome printing machinery, such as cell phone button, golf ball, toys, pens, mouse, electronic products, handicrafts, etc., for a variety of printedmmaterials For example: metal, glass, ceramics, plastics and so on. Printing area is relatively small plane, and the irregular surface of the product arc printing. Simple operation, easy maintenance and repair, lower prices for most used by customers





Feature:



u00b7Advanced computerized system control

u00b7pneumatically driven adopt from FESTO, can adjust the movement speed of each part

u00b7Built-in LED digital counter

u00b7Emergency stop system to ensure the safety of operator

u00b7Light-weight, strong aluminum cast machine frame

u00b7Ink trays, work table and pads are independently adjustable for easy color registration

u00b7Speed, pad and printing stroke are easily adjustable for different printing requirements

u00b7Ink tray, doctor blade, brush and pads are easily installed and dismounted for quick cleaning

u00b7The ink cup promote by cylinder ,can be slide more smoothly

Model PADMAC-1P-100TS PADMAC-1P-150TS PADMAC-1P-200TS

Print Color 1 color

Work station 1 pc

Cylinder head up and down distance 75mm

Cylinder stroke distance(mm) 125 175 225

Ink cup stroke distance(mm) 100 150 200

Standard Plate size(mm) 100 u00d7 200 100 u00d7 250 100 u00d7 300

Ink Cup Diameter 60 (optional), 90mm

Work Table size 200 u00d7 125 250 u00d7 125 300 u00d7 125

Maximum speed(pcs/hr) 2100 1800 1600

Power 110V/220V 50Hz

Power 35W

Pressure 6 Bar

Air Consumption(liter/min) 56 58 58

Dimensions(mm) 810 u00d7 450 u00d7 1370 1300 u00d7 460 u00d7 1400 1300 u00d7 460 u00d7 1400

Weight(kg) 94 113 120
