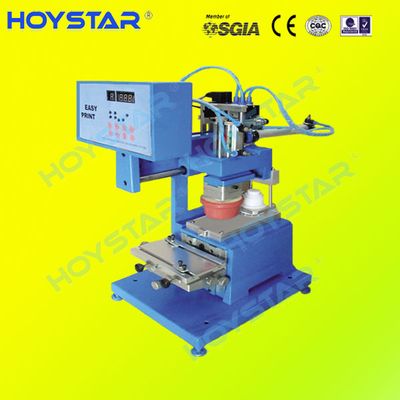

Mini desktop closed ink cup pad printing machine

Application:

This pad printer machine is High-capability and low-price, , this single color desktop pad printer is the most competitive domestic prices At present,small footprint,printing quality is steady, it is Suitable for printing the product which is less demanding on printing quality,such as electronic product,plastic shell,hardware product,stationery,small arts and crafts,the small logo on the surface of gifts and so on.

Description:

1. SCM IC complile action program,kinds of printing model options
2. Auto 4-digit counter built-in,and stat. Printing quantity
3. Airframe adopts coin alloy,and metal coating surface
4. Worktable,plastic head can be adjusted X.Y.Z direction.
5. the pressure of Sucking ink and printing pad can be adjusted independently
6. It has function of leveling ink by sliding automatically on front /back,this can avoid printing ink partial solidification
7. The speed of all the cylinders have an independent regulator intortum
8. Front/back distance is long,and it can print bigger size product
9. It adopts fully Taiwan pneumatic component
10. All the machine is running steadily,and high printing precision
11. All electric component of the machine are installed by open,it is convenient to maintain it.
12.This machine is installed with emergency stop button,it meets safety standard requirement

Technical parameter:

1. Steel plate:100*200mm
2. Start-up method:panel
3.Scraper working style: mechanical type
4. front/back distance:150mm
5.Up/down distance:75mm

6.Sealed ink cup diameter:90mm
7.Max.printing area:80*80mm
8.Printing speed:1500pcs/Hr
9.printing station:1PC
10.weight:30kg

More machine details,welcome to contact me at any time.
