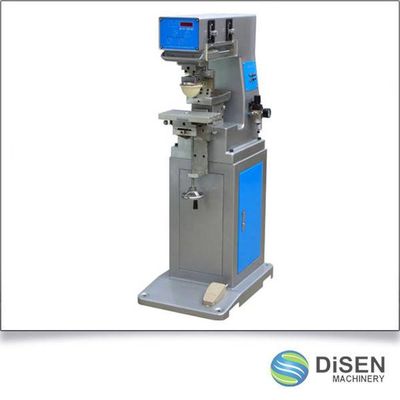

One color pad printing machinery

A copy of specification, one set of Allen key, one piece of cross Screw and straight Screw, one piece of scraper, one piece of fuse, 4 pieces of Screw for fixing pad, 1.5 meter of power line.

1.With mirocomputer-controller, semi-automatic, utility function, and the operating procedures are flexible and reliable.

2.The hardened axle can bearing made by famous processor and the SMC Pneumatic Components from Japan are adopted to reduce the repair and maintenance,so that the unit is not worn wasily and service life of machine parts are extened largely.

3.It has seprating colloid head and is convenient for adjusting the speed of movement back and forth, and is applicable to different printing needs.

4.Base for each inking pan can be adjusted independently at X and Y angle, with accurate chromatograph and improved production effciency.

5.The body of the unit adopts the die-cast rack of aluminum alloy and is both portable and solid.

6.The safely rubber sheet and emergency cutof system of power supply are provided so as to make unit comply wirh the international industrial safety standards.

7.With multilevel-controlled, and is satistied with different requirement of the printing speed.

8.Use the oil cup to inking , pro-environment and easy todisassembly and assembly and clean. Economize the ink.

9.It is setted 4-digit number auto-counter, and is convenient for recording the quantity of the printing products.

10.The colloid head is not leave moulage when blank line printing, it is prevent from the printing ink to dry when we pause the machine.

11.It is setting the standard procedure and off-standard program, breakthrough the function of ordinary machine, unlimitied program to procure ink and printing.

The largest area of plate:100*200mm

Oil cup diameter:90mm

Oil cup trip:100mm

Max printing speed:1200pcs/hr

Air consumption:91litre/min(5bar)

Power:110/220V 60/50Hz 50W

Dimensions:700*360*1250mm(Lu00d7Wu00d7H)

Weight:75Kg

Technical parameters:

The largest area of plate:100*200mm

Oil cup diameter:90mm

Oil cup trip:100mm

Max printing speed:1200pcs/hr

Air consumption:91litre/min(5bar)

Power:110/220V 60/50Hz 50W

Dimensions:700*360*1250mm(Lu00d7Wu00d7H)

Weight:75Kg

Payment:MoneyGram,L/C,TT,Western Union

Skype:disenmachine

MSN:disenmachine@hotmail.com



Pad printing machine

Machine features:

1.With mirocomputer-controller, semi-automatic, utility function, and the operating procedures are flexible and reliable.

2.The hardened axle can bearing made by famous processor and the SMC Pneumatic Components from Japan are adopted to reduce the repair and maintenance,so that the unit is not worn wasily and service life of machine parts are extened largely.

3.It has seprating colloid head and is convenient for adjusting the speed of movement back and forth, and is applicable to different printing needs.

4.Base for each inking pan can be adjusted independently at X and Y angle, with accurate chromatograph and improved production effciency.

5.The body of the unit adopts the die-cast rack of aluminum alloy and is both portable and solid.

6.The safely rubber sheet and emergency cutof system of power supply are provided so as to make unit comply wirh the international industrial safety standards.

7.With multilevel-controlled, and is satistied with different requirement of the printing speed.

8.Use the oil cup to inking , pro-environment and easy todisassembly and assembly and clean. Economize the ink.

9.It is setted 4-digit number auto-counter, and is convenient for recording the quantity of the printing products.

10.The colloid head is not leave moulage when blank line printing, it is prevent from the printing ink to dry when we pause the machine.

11.It is setting the standard procedure and off-standard program, breakthrough the function of ordinary machine, unlimitied program to procure ink and printing.



Machine accessories:

A copy of specification, one set of Allen key, one piece of cross Screw and straight Screw, one piece of scraper, one piece of fuse, 4 pieces of Screw for fixing pad, 1.5 meter of power line.



Advantages:

1. Microprocessor control for each function ;

2. 4-Digit auto counter built-in;

3. Coin aluminium structure ensures sturdiness;

4. Ink roller used for ink applying ;

5. Independent stroke and speed adjustment for pad up/down;

6. Auto balanced doctor blade ensures that ink can be scraped cleanly and completely;

7. Adjustable printing speed meets different printing requirements;

8. Ink roller keeps working while pad doesn't lower down avoid ink dry;

9. 1-pad plus 1-ink tray ;

10. One ink trays can be adjusted separately.



Machine Fittings:

1.Two 4"*6" plates,

2.One pads

3.One blades

4.a tool box.



Machine Updated Description:

1: Ink tray system updated to ink well system for better environmental protection.

2: Ink tray could be widen to the size of 150*150mm, 300*150mm for bigger printing size.

3: Adding the shuttle working table for acted as two colors pad printer with shuttle.

4: Pneumatic double head pad printer needs two pieces of rubber pads, two pieces of steel plates, one set of tooling ( Be made based on provided sample)

5: Ink, Thinner (function as thinning the ink)

6. Equipped with SMC& Festo Pneumatic Parts



Pad printing machine

Application:

This pad printer is featured by the higher working capacity. It is also suitable for those products with high printing size requirements. The ink tray and rubber pads could be changed for multi color's printing. Widely used for logo printing on surface such as electronic products, plastic shell, hardware products, stationary, gift set, artistic products, toys etc.



Imagination Pad and Screen Printing Technology Trends

For the printing and screen printing, these printing methods are becoming more powerful, higher accuracy, a larger production and lower costs. The past five years, printing and screen printing are applied in many fields and development, such as from car fender-to-high sensitivity of the equipment, computer shell, hous
