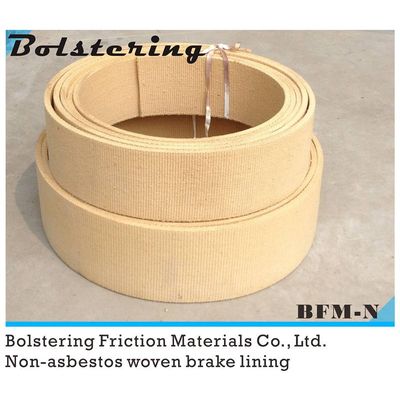

Non-asbestos woven brake lining

Non-asbestos woven brake lining is firstly braided with yarn that wraps E-Glass fiber and copper wire heat-resistant, wear-resistant acrylic, secondly dips into synthetic resin with special way and finally is treated with high heat.

Product manufactured from a solid woven fabric with a copper wire inclusion which helps to stabilize the friction value by conducting from the operating surface.

This product is a particular technique that firstly gets soaked in friction-proof and thermostable synthetic resins and secondly carries on heat treatment.

Interface Temperature (Degree Celsius) || Coefficient of Friction

100 Degree Celsius || 0.40 ~ 0.65

150 Degree Celsius || 0.35 ~ 0.65

200 Degree Celsius || 0.30 ~ 0.60

Availability

Nominal Roll Length ---------------------------10m up to 20m

Thickness -----------------------------------------from 5mm up to 20mm

Width ----------------------------------------------up to 500mm

Woven brake lining is suitable for most dry condition and particularly suitable for arduous usage on cargo shipping, big-powered machinery, windlass, winch, crane, light and heavy-duty range of commercial vehicles.

Max. Pressure ----------------------------------------------250psi

Max. Rubbing Speed --------------------------------------5000ft/min

Max. Intermittent Temperature -------------------------644u00b0F (340u00b0C)

Max. Continuous Temperature --------------------------600u00b0F (316u00b0C)

Ultimate Tensile Strength --------------------------------376kg/cm2
