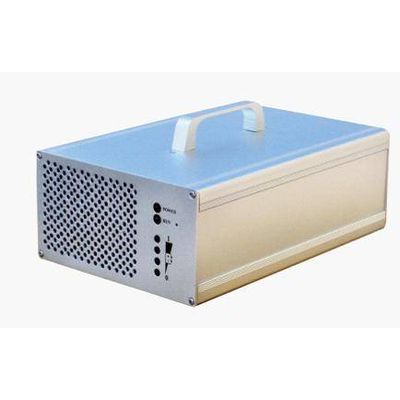

Pulse Current Charger

This is an intelligent battery charger, which adopts advanced high frequency switching mode power supply technology, and Pulse Current. The charging or recovery process is controlled intelligently by a high performance microprocessor.

Approved battery charge algorithms for ideal charging, which can not only make the charging with high efficiency, but also can resume the battery capacity and increase the battery life span. Fully sealed enclosure witch provides improved reliability in demanding environments, and the advantages of light weight, compact size and long life design make the charger more competitive than any other battery chargers

Some charger modules can be used in parallel directly to increase charging current and realize fast-speed charging.

AC Input Voltage: AC110Vu00b110%

or AC220Vu00b115%

AC Input Frequency: 45Hz－65Hz

Max AC Input current: 14A@110V, 7A@220V

DC Output Voltage: See the Type Table

DC Output current: See the Type Table

Maximum Efficiency: ≥88%

Environmental Enclosure: IP32

Immunity-Europe: EN61200-4-2/3/5/6/11

Safety-North America: UL2202/UL1564 2nd Edition

Shock & Vibration: SAEJ1378

Operating Temperature: -20℃-50℃(-22-122)

TypeBattery VoltageCharge current

ipCHPC-124012V40A

ipCHPC-243024V30A

ipCHPC-362536V25A

ipCHPC-482548V25A

ipCHPC-602060V18A

ipCHPC-721572V13A

ipCHPC-721872V18A
