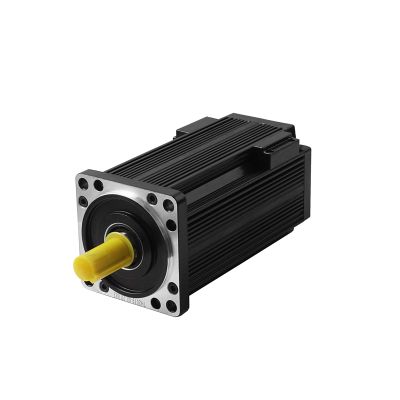

600W~2700W AC Servo Motor

Characteristics:
WHEATSTONE AC servo motor can control the speed and position accuracy. It can convert the voltage signal into torque and speed to drive the control object. The rotor speed of the servo motor is controlled by the input signal and can respond quickly. In the automatic control system, it is used as an executive element, and has the characteristics of small machanical time-constant, pick-up voltage and high linearity. Converted into angular displacement or angular velocity output on the motor shaft.

Code description

(1) Frame size and motor outer diameter, Unit: mm;

(2) AC servo motor type: “ST” indicates that the motor is a permanent magnet synchronous motor driven by sine wave;

(3) Sensor specifications: “M” means incremental encoder(2500 C/T);

“J” means absolute encoder(17bit);

“X” means rotary encoder;

(4) Rated torque: indicates motor rated torque, and its value is three digits X0.1 unit Nm;

(5) Rated speed: motor rated speed, its value is two digits X100 unit rpm;

(6) Code of brake: “B” means with brake, the default means no brake;

“Y” means wiring type, the default means normal type;

“F” means motor structure is waterproof (glass machine special), the default means normal type.

(7) Voltage level: indicates the rated voltage of the motor, including AC380V, the default means AC220V;

(8) Custom features: custom code.
