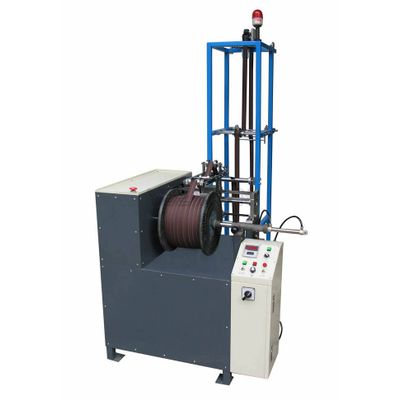

Automatic Flat Tape coiling machine/ Bandlet Winding Machine

This machine is suitable for velvet ribbons, silk ribbons, rope tapes, elastic bands, zipper tapes, and other bobbin tapes. The horizontal-winding staggered-form mode is adopted on the bobbin, which may save packaging time. The distance on the right and left can be adjusted based on band width. The band is accurately and neatly arranged on the surface of yarn tray, with adjustable speed. Yardage length can be accurately calculated.Therefore, this machine is the most simple and the most advanced winding machine at present.



Features

1 If there exists a broken belt, the machine may automatically stop.



2 Winding length of belts can be set, so as to effectively fix length



3 The swinger may be adjusted according to band width and automatically arranged



4 Manufacture large-volume winding bobbin tapes and elastic bands as required by users



5 Install the tape loading device for constant-linear-velocity winding To obtain a uniform tension for dyeing in the condition of ungirding



6 The device of detecting holes, the machine will stop the moment the warning light is on (optional)

Technical parameters

Number of winding strips:1

Winding width:under 40mm

Winding speed: 200meters/minute

Winding mode : parallel winding

The motor power: 750w

Net weight of equipment:950kg

External dimension: 1410*730*2020mm
