Feature summaryuff1a
u25cf Corrosion resistant coating inside and outside
u25cf Withstand salt spray test for long durations
u25cf Widely used in aircraft, ships, automobiles, antennas, solar equipment, etc
u25cf Available options for Wire Harness
ACCESSORIESuff1a
GEARBOX Connector
P/N | Frame Size | Phase | Shaft Type | Body Length(mm) | Holding Torque(Nm) | Rated Current(A) |

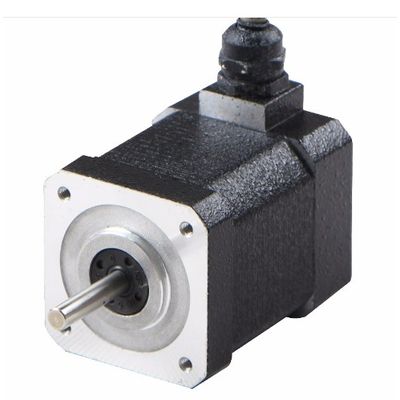

BNP42STH47-1684A-IP65 | NEMA17(42mm) | 2 | Single Shaft | 56.5 | 0.44 | 1.68 |
Item | Value |
Phase | 2 |
Step Angle | 1.8° |
Radial Play | 0.02mm |
Axial Play | 0.08mm |
Max Radial force | 28N |
Max Axial Force | 10N |
Dielectric Strength | 600VAC/1s |
Insulation Resistance | 100MΩ |
Ambient Temperature | -20uff5e+50u2103 |
Insulation Class | CLASS B |
Certification | CE |
IP Rate | IP65 |
Lead Wire Type | Plug |
Shaft Type | Single shaft |
Rotor Inertia | 68 g-cm2 |
Frame Size | 42 |
Body Length | 56.5 |
Holding Torque | 0.44 N.m |
Current/Phase | 1.68 A |
Resistance | 1.65 Ω |
Inductance | 2.8 MH |
Winding Type | Bipolar |
Detent Torque | 0.04 N.m |
Front Shaft Length | 24 mm |
Lead Wire No. | 4 |
Weight | 400 kg |
Shaft Diameter | φ5 |
