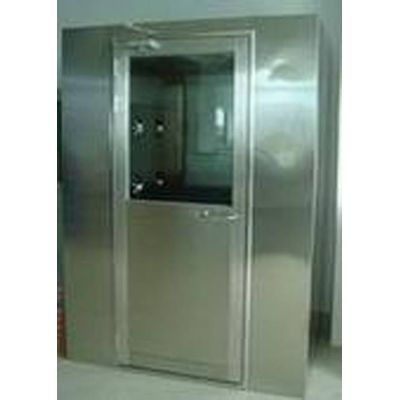

manufacture all kinds of cleanroom air shower/air shower room

1.The clean class of air shower is 100 class, with HEPA air filter H13 with 99.99% at 0.3micro meter

2.The wind speed is>25m/s.

1) Entire stainless steel baseboard





2) HEPA filter with efficiency 99.99% at 0.3um





3) Toughened glass for the door's window





4) Fully-automatic infrared induction blowers and showers





5) 'Zhengtai' middle relay, time relay (soft key button type)





6) LED display





7) Adjustable range: 0 - 99s





8) Doors will close automatically when activated





9) Stainless steel nozzle





10) 'Nantai' double whorl shell outside motor





11) The air velocity is greater than 25m/s





12) Low noise level





13) Arc corner, 1,000-rank static state, patented product







14) customized design is available.

MODEL

RKS-1400-P1

RKS-1400-P2

RKS-1400-P3



External dimension(WxDxH)(mm)

1400x1000x2180

1400x2000x2180

1400x3000x2180



Internal work zone(WxDxH)(mm)

790x930x1910

790x1930x1910

790x2930x1910



Person per cycle

1-2 person

2-4 person

3-6 person



The power of fan

380V/50Hz/1W (1fan)

380V/50Hz/1100W (1fan)

380V/50Hz/1100W (1fan)



Air velocity of fan(mu00b3/h)

1300

1300

1300



Fan run(r/min)

2800

2800

2800



Nozzle in stainless steel

12PCS

24PCS

36PCS



Wind speed(m/s)

more than 25-30

more than 25-30

more than 25-30



Noise level(dB)

<62

<62

<62



HEPA filter

Size(mm)

625x625x150

625x625x150

625x625x150



Efficiency

99.99%@0.3 micro meter



Air velocity(mu00b3/h)

1000

1000

1000



Initial resistance(Pa)

<220

<220

<220



Pre-filter

Size(mm)

775x380x17

775x380x17

775x380x17



Efficiency

G3

G3

G3



Efficiency

75%@5 micro meter

75%@5micro meter

75%@5micro meter



Initial resistance(Pa)

<30

<30

<30



Parameter

Power supply

380V/50Hz

380V/50Hz

380V/50Hz





Netpower (Kw)

1.5

2.5

3.5

food processing, biological industry, the medical industry, electronic industry, the glass industry

Air shower room is a necessary passage for person or goods entering into the clean room in order to minimize the amount of particulate contaminants. Personnel move through the air shower while particulate contaminants is blew off by the clean high velocity.
