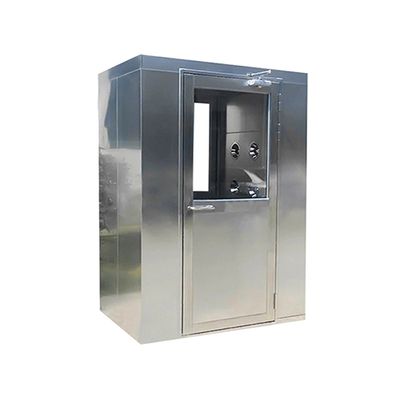

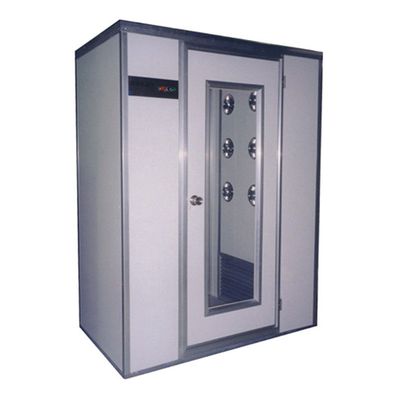

Stainless Air shower For cleanroom

SPECIFICATIONS

Composition: Cabinet,stainless steel door(Cold steel),pre-filter,HEPA filter,Pan, plenum chamber,nozzle

Outer wall material:Powder coated cold-rolled steel sheets

Internal wall material: Mirror Polish SS / Full powder coated cold-rolled steel sheets

Nozzle material:SS (Twice pressurization nozzle)

Pan material:SS

Door interlock type:Electronic interlock

Control system: Full-computer voice control system.

Blowing time:Controlled by LED time counter,adjustable from 0s to 99s.

Efficiency:99.99% at 0.3μm (According to applicable environment)

ADVANTAGES

Inner wall material is stainless steel with seamless connection.

Use multiple-speed air fans of high pressure and airflow ,with features of small size,high air flow,high pressure,low noise,etc.

Adopting energy saving lamp.

Stainless steel nozzles,air outlet velocity ≥ 25m/s.

APPLICATIONS

It is an airborne pollutants barrier between clean room and the workers' gowning area and prevents accidental contamination due to the unwanted or improper opening of the doors.It's mainly used in electronic and pharmaceutical industries,research centers,semi-conductor,processing areas,computer manufacturing and many other places requiring restrictive clean room entry.
