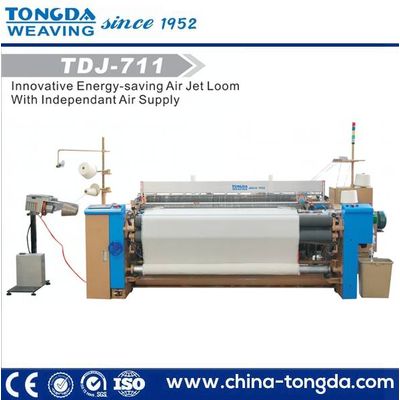

weaving machine/energy saving air jet loom

This product is a new type of energy saving invention developed independently by our company.



The loom is equipped with multiple independent air pump in the main transmission shaft. This means



you don't have to buy expensive centralized air compressor and high energy consumption alone.



Random linkage, using electronic weft storage, main&auxiliary nozlle and a special combination of reed,



No electromagnetic valve to control the weft insertion.



Composed of a plurality of groups of pump according to the angle adjusting the injection time,



through continuos jet to weft insertion



The model uses four Linkage Beating-up, electronic or mechanical let-off, take-up machine.

Independent Air Supply



The opening mechanism adopts a crank or cam opening, weaving some low fabric, energy saving > 50%.

Reed space:190, 230, 260, 280, 340cm

Weft selection:electronic single or double nozzles

motor power:3.8kw, 4.0kw, 4.5, 5.0kw

Speed:400~500r/mi

weft insertion:main, auxiliary nozzle with a profiled reed,

single pump angle adjustment, the electromagnetic valve control

Shedding:crank or cam

take up:mechanical

Let -off:mechanical or electronic

Selvage:planetary gear

Cutter:mechanical

Lubrication:oil bath type for the big box, let-off, take-up: gear box, the other is manual

to produce with all kinds of material and mainly for luxury fabrics.
