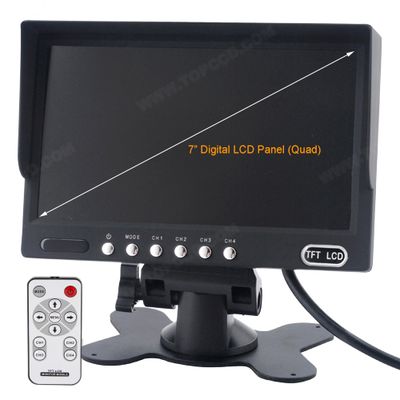

7inch Quad Mobile Vision Monitor TFT LCD Digital Reversing Screen Car Dashboard Rear view Display 12V to 32V Monitor for School bus,buses,trucks,farm tractor,heavy equipments,fork-lifts,RV and so on
. Model: TOP-007LQ
. Screen Size: 7-inch LCD Digital Panel A+
. Resolution: 800(W) x RGB x 480(H) (Default)
1024(W) x RGB x 600(H) (Optional)
. Video System: PAL/NTSC (AUTO)
. Screen Ratio: 16:9
. Brightness: 400cd
. Contrast ratio: 500:1
. Viewing Angle: Hor. L(70) R(70) Ver. UP(50) DOWN(70)
. Video Inputs: 4CH
. Video Source: 1Vp-p, 75Ω (CVBS)
. Audio Inputs: 1CH
. Triggers: 4 Auto-triggers (wires incl. delay)
. OSD Menu Function: Image,Color, Brightness, Contrast, Volume, Multi-languages
. Image reversion: UP/Down and Left/Right
. Connectors: 4PIN or RCA Optional
. Operation Mode: Key or remote control
. Sunshade cap: Yes (Fixed)
. Bracket: Butterfly bracket (fan bracket / embedded frame optional)
. Power consumption: 7W
. Voltage Input: DC9V/32V wide voltage
. Operating Temperature: -10u2103~+70u2103 RH95% Max.
. Storage Temperature: -20u2103~+80u2103 RH95% Max.
