Single phase Din-rail electric meter pass through multifunction meter RS485
As a professional manufacturer, YTL designs and produces wireless energy meters which are cost-efficient and ideal for the use in solutions for AMR/AMI at residential as well as industrial applications.
YTL is devoted to develop and design all types of wireless energy meters, concentrators and solution applications. With a combined design of the special accessories, we have successfully developed series of competitive products of small size, multifunction, low power consumption and excellent performance. We offer a one-to-one service to our partners. With annually over 68 projects that are successfully finished and holding over 200 patents of design rights, we are also advanced in the technology and patents of current sampling.
1.Product Details |
||
Product Name |
Single phase Din-rail electric meter pass through multifunction meter RS485 | |
Installation type |
Din rail | |
Module No. |
D116003 ( Din-rail meter ) | |
Brand |
YTL ( Din-rail meter ) | |
Rated Current |
5(100)A | |
Reference Voltage |
120V/240V, 230V, 120V | |
Frequence |
50/60Hz | |
Accuracy |
Active 0.5S,Reactive1.0S | |
Impulse Constant |
800imp/kWh | |
Start Current |
0.004Ib | |
Connection Mode |
Direct Mode | |
Communication& Protocol |
RS485 | |
Power Consumption |
For each voltage circuit≤1W For each current circuit≤0.5VA | |
Material of meter case |
PC | |
Size |
90*36*63.5mm | |
Certificate |
CE ISO9001 | |
Standard |
IEC62052-11/IEC62053-21,DIN EN50022,din43880 | |
2.Functions and characteristic |
||
A. Active electricity measuring, without adjustment under long-term functioning. |
||
B.With RS485 communication, index in accordance with IEC 62056-21(A mode), which focuses on convenient intelligent management conveniently (If without 485, there is no such function). |
||
C.Wide work temperature range: -30—55°C |
||

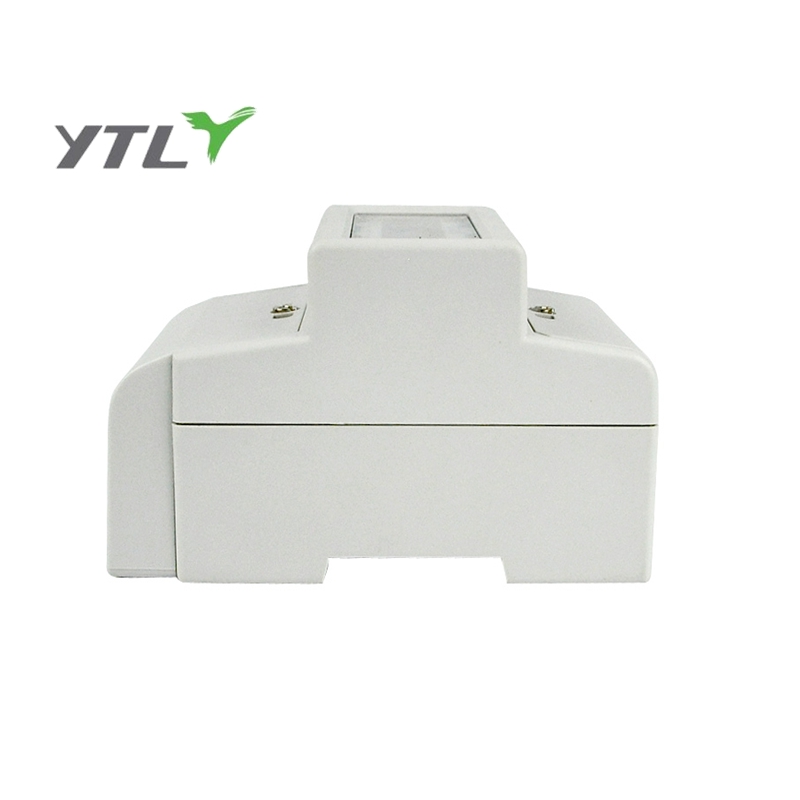

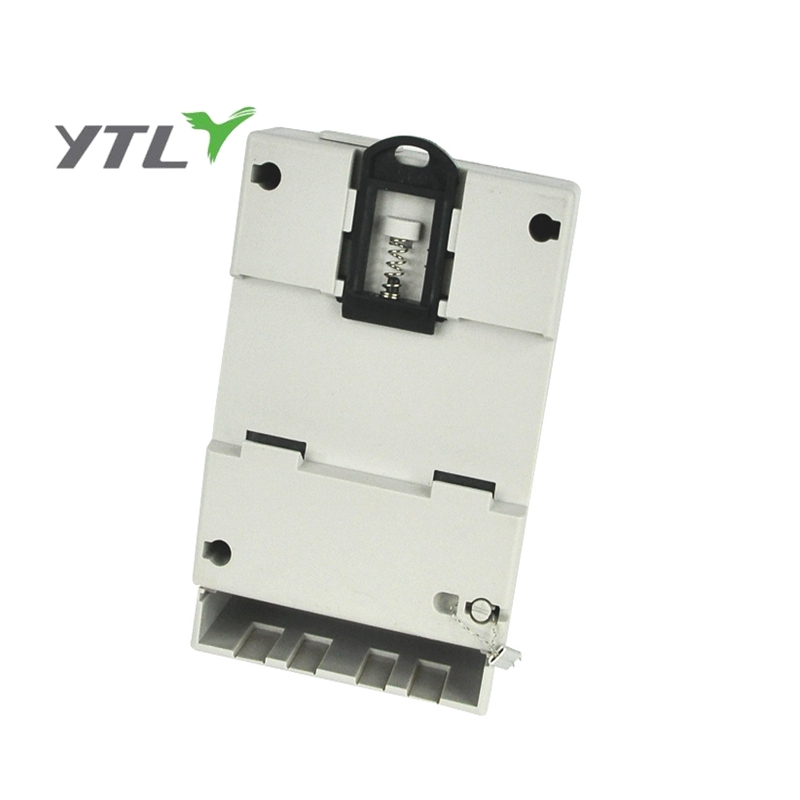

3.Outer and mount dimension: |
||
![]() |
||

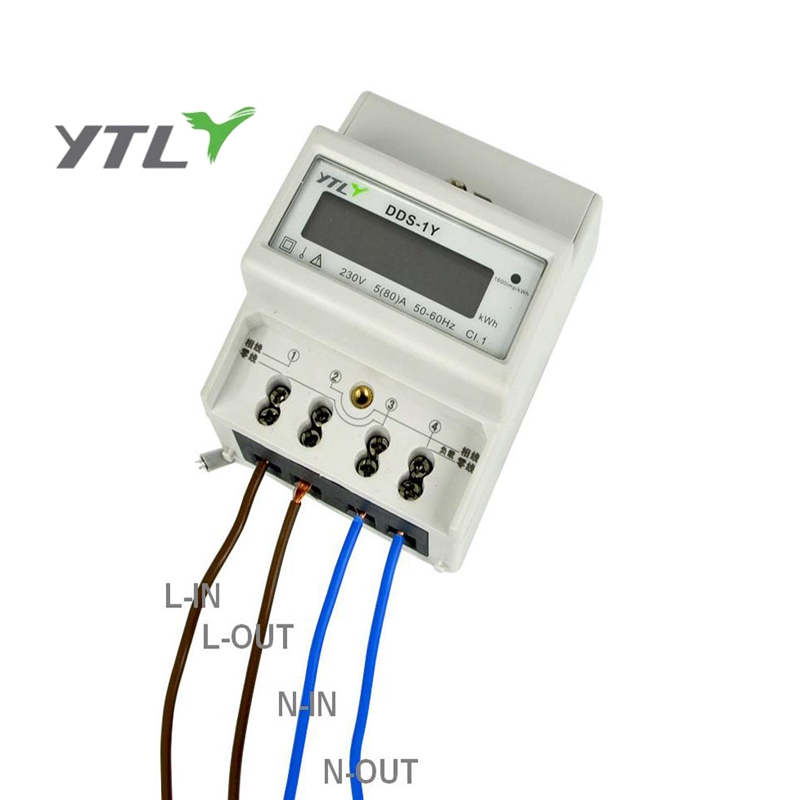

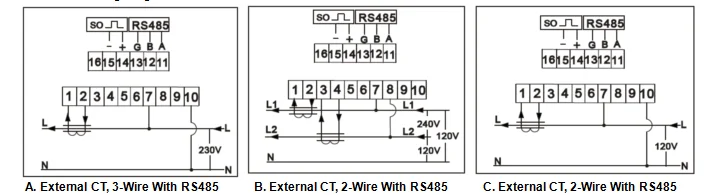

4.Wiring diagram: |
||
![]() |
||
5.Transaction Information |
||
MOQ |
500pcs | |
Sea Port |
Shanghai | |
Payment Terms |
TT prepayment | |
Supply Ability |
50,000pcs permonth | |
Delivery time |
25 days | |
Normal Package |
white box or coloful box |
