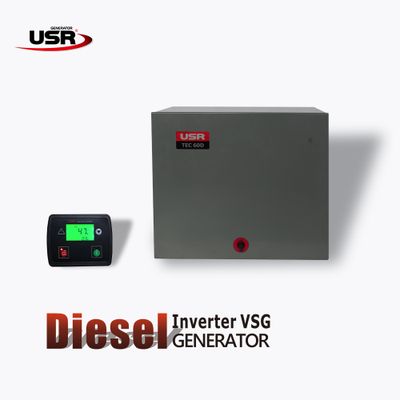

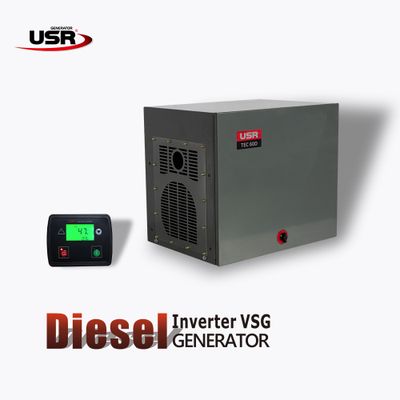

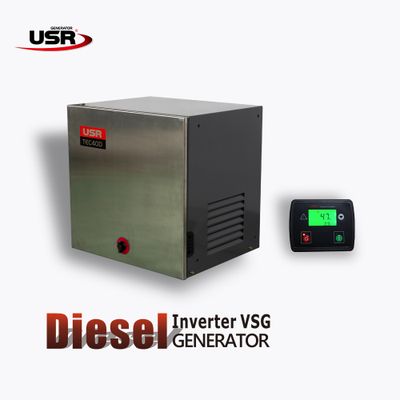

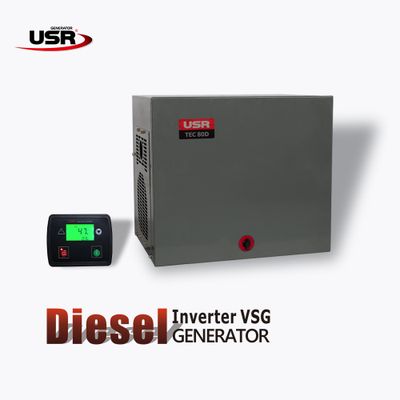

TEC80D 8kW Diesel RV inverter generator

Test Video:

Overview

Quick Details

Place of Origin:

Fujian, China

Brand Name:

USR

Model Number:

TEC80D

Rated Voltage:

230V

Rated Current:

31.3A

Speed:

3600

Frequency:

50Hz

Fuel:

Diesel

Type:

Inverter Technology

Certificate:

CE/ISO9001

Warranty:

2 Years

Keyword:

RV GENERATOR

Noise level:

65dBA@7m(no Load)

Supply Ability

Supply Ability50 Piece/Pieces per Month

Packaging & Delivery

Packaging Detailssample include the main generator,oil tank and extend sliencer. packed in one carton.then packed in pallet to protectPortFUZHOU PORTLead Time:

Diesel Medical technology vehicle generator 8kW PMG

Product Description

TAKE THE POWER WITH YOU

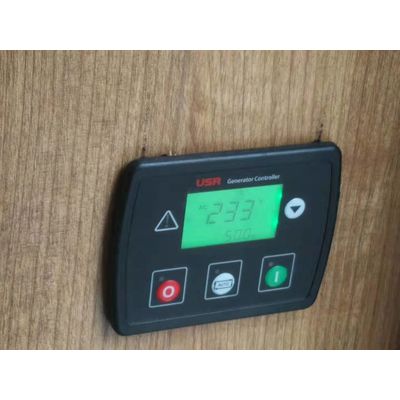

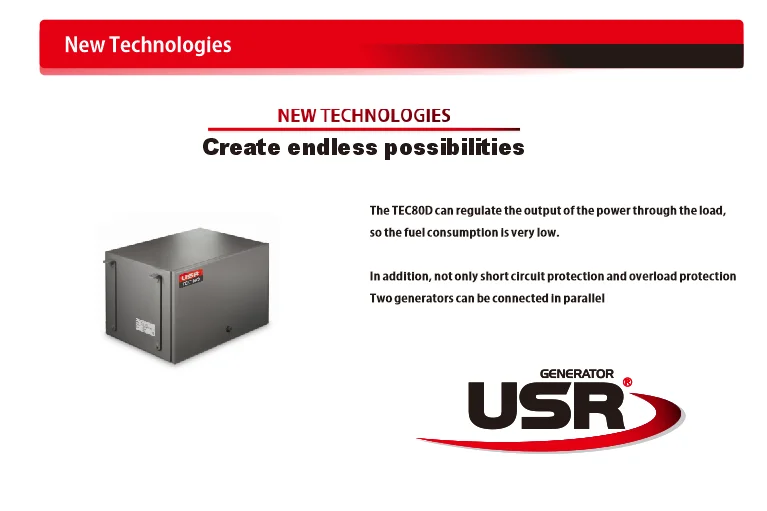

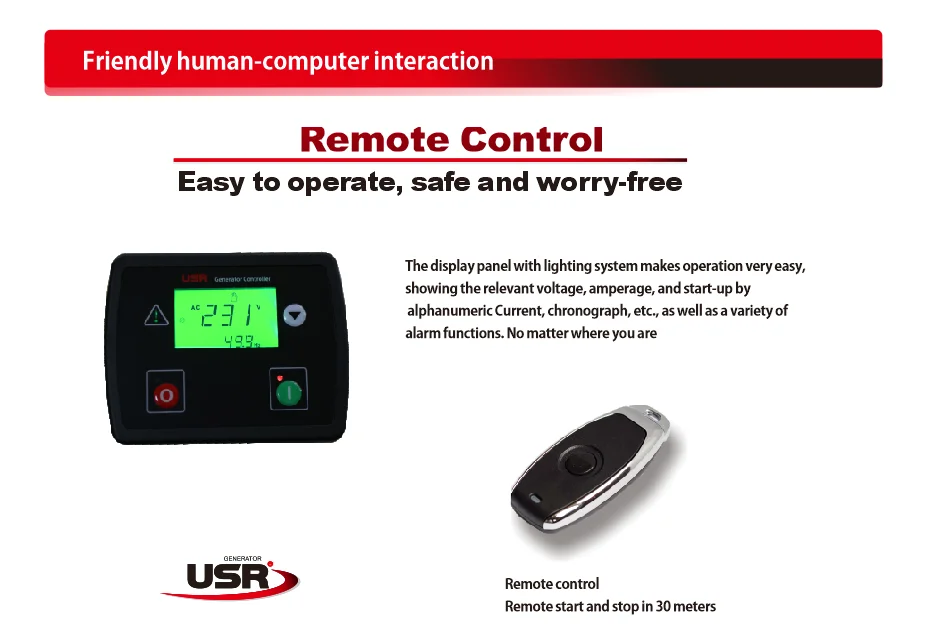

Consuming only 0.7 l of diesel per hour, the USR TEC 80D is one of the most economical Generators in the range. It generates a clean 230 V AC output voltage that satisfies even sensitive electronic devices. The well engineered inverter technology prevents over- and under supply of connected consumer units. Like all USR generators the TEC 80D comes with a robust and sound dampened stainless steel housing. Remote control is included as standard. There's no reason to ever be without power!

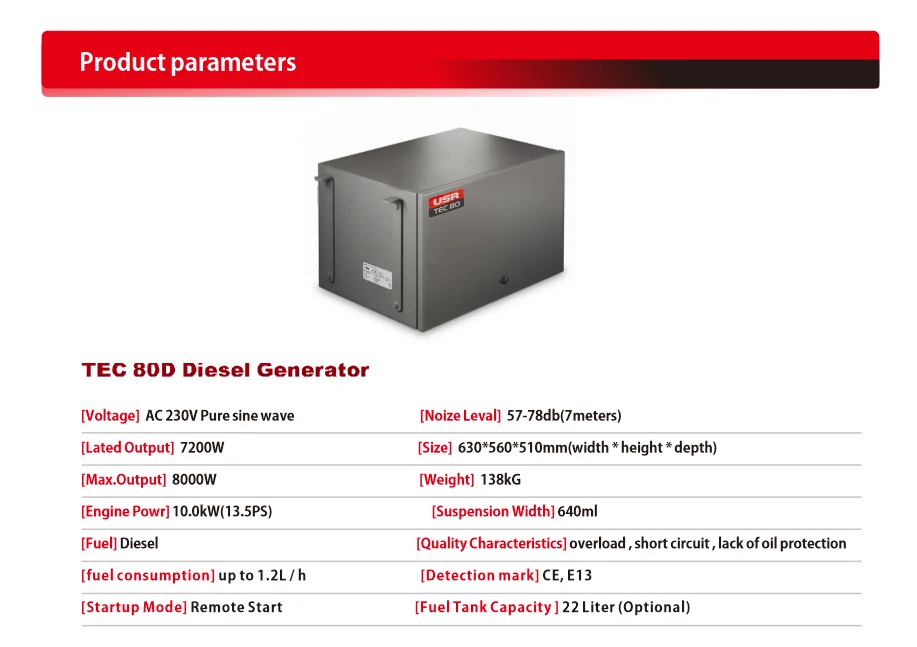

SPECIFICATIONS

GENERAL
Model TEC80D

Scope of delivery Generator, control panel + 5mt cable, external silencer + 2mt flexible exhaust pipe, change over switch, clamps, washers, fuel filter, cut out template, user and installation manuals

Product Description Diesel generator, 7.2 kW, 230 V

DIMENSIONS

Dimensions product depth  560 mm
Dimensions product height 510 mm
Dimensions product width  630 mm
Net weight 138 kg

ELECTRICAL

Output voltage 230 V
Output current 31.3 A

PERFORMANCE

Fuel type Diesel
Continuous power 25°C 7200.00 W
Operating temperature min -15.00 °C
Operating temperature max 50.00 °C

LOGISTICS
Dimensions parcel depth 610 mm
Dimensions parcel height 630 mm
Dimensions parcel width 670 mm
Parcel weight 156 kg
