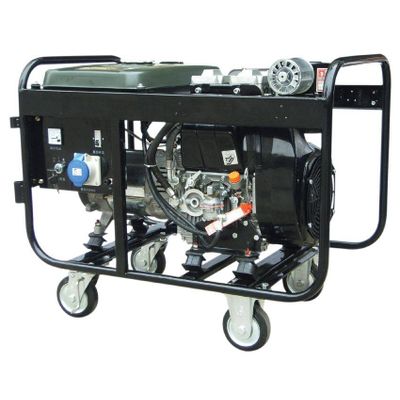

8KW Three Phase Rare Earth Permanent Magnet Diesel Genset

Product Description

This 8 KW rare earth permanent magnet diesel genset is powered by American Kohler engine and configured with our patented technology product--rare earth permanent magnet generator. It is industrial product rather than civilian product made by manufacturers from general machinery industry. With two-year guarantee for generator replacement, It has better cost-performance compared with Japan-imported gensets. Our clients are those people or fields that require quality products and high performance.

Product Feature

1.Compact structure, small size, and light weight which is about 30% lighter than a common generator.IT USE 20% LESS FUEL ALWAYS.
2.Complicated energy consuming devices which are parts of a common generator, such as excitation winding, exciter and AVR voltage regulator are not needed. Besides, the efficiency and the power factor are 20% higher than those of a common generator.
3.It has ultra strong over load capacity and can start inductive loads of approximate power such as UPS power source, air conditioner and motor etc.
4.It is highly reliable, maintenance free, long life, water proof and dust -proof with no more than 50 degree of temperature rise when the generator is under continuous full-load run.
5.Transient voltage deviation of both shock load and sudden load drop are less than 10%. Steady-state voltage deviation is not over 0.5. Neither line voltage harmonic distortion rate nor telephone harmonic factor is over 2%. Please be assured of the use of precision instruments and meters.
6.Compared with brushless motor, it has neither carbon brush that brushless motor does not have nor complicated excitation control unit. This makes the structure simpler and lowers the whole machine failure rate. Besides, it has ultra strong overload capacity which belongs to carbon brush motor.(the overload capacity of Brushless motor is low)
7.Compared with brush motor, it has not carbon brush and has no electric sparkle or electromagnetic disturbance under operation. It is perfectly suitable for communication and military use.

Rare earth permanent magnet generator has the advantages of both brush motor and brushless motor, and has unsurpassable superiority in features and performance than both.

Product Specification / Models

Genset model: GF8S/MC
Engine: Kohler KD425-2
Power(hp):19
Cyliner No.:2
Engine speed(r/min): 3000/36000
Fuel type: 0# diesel for room temperature, and -20# diesel for low termperature
Cooling method: Air cooled(with low temperature start)
Displacement(cc):851
Starting mode: Recoil/Electric Start
Fuel tank capacity(L):28

Application / Models

This product is widely used in communication, railway, bank, oil, utility and military fields so far, and has been exported to south America, Northern Asia and Africa markets for military and government purchase.

Other Information

IT CAN WORK UNDER -40~~+50 DEGREE EASILY, GOOD QUANLITY UNDER GOOD PRICE, WE SUPPLY CHINA UNICOM/CHINA TELCOM/CHINA MOBILE FOR MANY YEARS ALL OVER CHINESE LOCAL MARKET.WE DESIGN LONG LIFE GENERATOR FOR YOU.
