Product Description

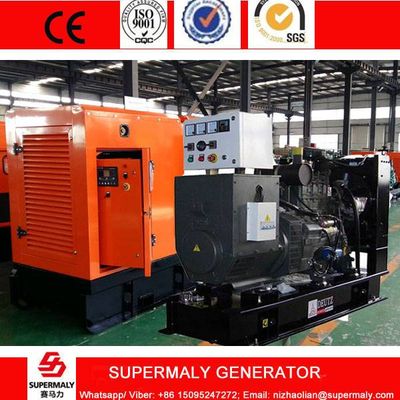

100KW Diesel Generator by original Weichai Deutz engine. Weichai is one of the largest engine manufacturer in the world. Weichai Deutz engine is known as good quality, continuous running function, low noise, etc.
MODELSD100GF
Standby Power(50HZ)110KW/137.5KVA
Prime Power(50HZ)100KW/125KVA
GENERAL SPECIFICATION
Brand New Deutz Powered Diesel Generator Set
Dual phase system: single or three phase
Dual Voltage output: 200V-240V, 400-440V AC
Rated frequency: 50/60HZ
Power factor: 0.8
ENGINE SPECIFICATIONS
Deutz Diesel Engine -- Manufactured by Weifang Weichai Deutz Diesel Engine Co.,Ltd
Direct Injected
Industrial 4-Cycle, Water-Cooled (Radiator-Cooled)
Engine Speed: 1800 rpm /1500rpm
Governor: (Automatic) Electrical
Model: WP6D132E200
Air intake System: Turbocharger
Cylinder Arrangement: 6cylinder in LINE
Bore and Stroke: 105*130 (MM)
Frequency Regulation ,Steady State : u00b10.5%
A.C. ALTERNATOR SPECIFICATIONS
New Brushless Alternator
Built-In Automatic Voltage Regulator (A.V.R.)
Rotating Field, Self-Ventilated, Double-Shielded Single Bearing
Class "H" Insulation
Rotor Balance (in accordance with BS5625 Standard 12.5)
PANEL CONTROL
Key Manual Start Module Engine Control & Monitoring Panel
Low Oil Pressure , High Water Temp Protection Features
Tamper-Proof Engine Hour Counter
Auto/Manual Start
Simultaneous Multiple Engine Parameters Monitoring
Remote Start/Stop thru SMS, with GSM SIM Card (on some models)
General Features
Engine(Deutz WP6D132E200)
Radiator 40C max, fans are driven by belt ,with safety guard
24V charge alternator
Alternator (XN274DS), single bearing alternator IP23, insulation class H/H
Soundproof canopy
8hrs base fuel tank
Absorbers
Air filter, fuel filter, oil filter
Main line circuit breaker
Standard control panel
Two 12V batteries ,rack and cable
Ripple flex exhaust pipe ,exhaust siphone, flange, muffler.
User manual
Product Feature
The 100KW diesel generator is CE, ISO certificated.
With engine CUMMINS, PERKINS, DEUTZ, WEICHAI, LOVOL, YUCHAI, XICHAI, WEIFANG RICARDO, etc.
Sales Promises
Supermaly provides a full line of brand new and high quality products .Each and every unit is strictly factory tested.
Warranty is according to our standard conditions: 12 months or 1500 running hour's, subject to the earlier one.
Service and parts are available from our factory or distribution in your location.
Product Specification / Models
Open-frame Type:
Overall Size :2550(mm)*820(mm)*1530 (mm)
Weight:1300 kgs
Silent type:
Overall Size :3100(mm)*1050(mm)*1700 (mm)
Weight:1570 kgs
Application / Models
factory, market, subway, highway, telecommunication, harbor, building, farm, oil filed, etc.
