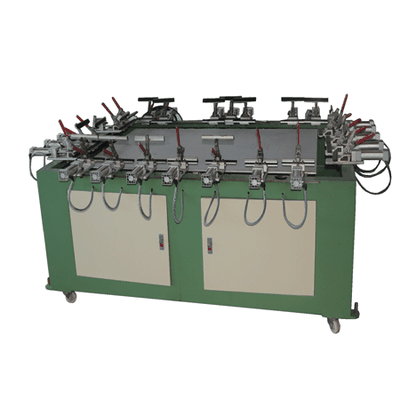

Pneumatic stretching machine

Product Description

Special equipment, the taut mesh reliable and stable tension in the network box is currently on the market the most common type of mechanical tension and pneumatic pulled

Performance:
. High-strength aluminum rack.
2 Push-pull free retractable guide rod.
3. Pneumatic given network to make the tension more uniform and more stable to prevent the mesh torn.
4. Pneumatic-drive pulling silk, micro adjustment, conducive to the tension of flexibility and control.
5. High-strength aluminum alloy pull the net head, the screening is more stable.
6 Free disassembly, easy to move.

Technical Parameters:
SMP-6080TS:
1.Max tighten area:600×800mm.
2.Dimension:1500×1800×800mm.
3.Net weight:145kg.
4.Max silk tension:40N/CM.

SMP-80100TS:
1.Max tighten area:800×1000mm.
2.Dimension:2000×2300×800mm.
3.Net weight:165kg.
4.Max silk tension:40N/CM.

SMP-100120TS:
1.Max tighten area:1000×1200mm.
2.Dimension:2000×2300×800mm.
3.Net weight:185kg.
4.Max silk tension:40N/CM.
