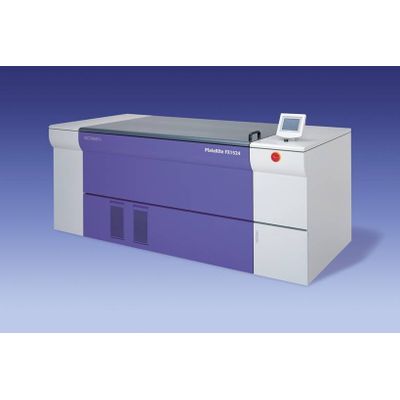

PlateRite FX1524 and FX1200 Flexo letterpress CtP

Provides higher quality and efficiency for flexo & letterpress printing

The PlateRite FX serie are high-quality, easy to use, reliable CtP recorders that offer optimal flexo/letterpress plate output for printing and prepress companies. They can image the black mask layer of resin plates directly, thereby eliminating the need for fi lm and other intermediate processing. This results in more efficient operations, as well as more consistent output quality. What's more, the PlateRite FX series units' superior halftone dot reproduction ensures consistently high quality printing even in the highlight and shadow areas. The PlateRite FX1524 and FX1200 are designed for a wide range of uses, including the production of labels, flexible packaging, cartons, and corrugated packaging. Plates up to 1,067 u00d7 1,524 mm (42.0" u00d7 60.0") for FX1524 and up to 1,067 x 1,200 mm (42.0" x 47.2") for FX1200 can be loaded onto their drum with ease, ensuring high precision, high quality output of resin plates. The PlateRite FX870 is the ideal fl exo/letterpress CtP recorder for printing companies that already possess letterpress printing presses but want higher quality output, as well as for companies looking to improve the quality of the labels output from their intermittent letterpress printing presses, offset label printing presses, or flexo combination printing presses.



In their standard configuration, the PlateRite FX1524, FX1200 and FX870II support an output resolution of 4,800 dpi.

FX1524 and FX1200 Flexo letterpress CtP

High Quality and consistent plate quality

The PlateRite FX series eliminate many of the problems associated with platemaking using film, including image unevenness, problems caused by dust, and UV scattering. They also eliminate the many problems inherent in going from film to plate, such as misalignment of the film during platemaking and registration errors arising from stretching of the film. This helps ensure consistent plate quality and reduces the waste inherent in repeating plate output due to errors.



Proven technology

The light source used by the PlateRite FX units, a multi-channel laser diode, is the same type of laser as those used in Screen's traditional offset CTP recorders. This proven, reliable, high-powered laser images the black mask layer of resin plates. In addition to enabling sharp imaging, the PlateRite FX units' light source is both long-lived and inexpensive to operate.



Superior reproduction of fi ne lines and white knockout text

With CtP plates, scattering of the UV light during plate imaging is eliminated, so sharp relief patterns can be created. This ensures superior reproduction of fine lines and white knockout text.



High-quality plate output

Unlike traditional printing plates, CtP plates can include both highlight relief patterns and shadow cutouts, which ensure that the minimum and maximum halftone dot sizes are reproduced accurately. This dramatically increases quality from the highlights to the shadows, across a wide range of image densities.



4,800 dpi resolution for high-quality output

The PlateRite FX series offers a maximum output resolution of 4,800 dpi. This high resolution significantly reduces the incidence of problems common in low-resolution output, such as jaggies in diagonal lines and curves, and dramatically improves the repeatability of fine line reproduction. 4,800 dpi output also delivers smooth gradations, and almost completely eliminates unevenness, even in the highlight areas.



Easy Operation

Leading and trailing edge clamps save the operator time and trouble when 1,067 u00d7 1,524 mm (42.0" u00d7 60.0") plates are used. The PlateRite FX1524 features a button operated loading mechanism, which loads plates reliably. Manual plate loading is also available, and the operator can choose the optimal plate loading procedure depending on the size of plate being used. Note: The minimum supported plate size is 200 u00d7 200 mm (7.9" u00d7 7.9").



High-end Screening

AM screening

For letterpress and flexo printing

AM screening, which is the form of screening used most commonly in the printing industry today, involves creating halftone dots separated by a fixed distance and arranged in a regular pattern. Varying the size of the halftone dots used creates areas of higher and lower color density. AM screening results in a highly consistent color appearance, and is easy to print.



Flexo Dot

Letterpress printing

With traditional AM halftone dots, the reproduction of extreme highlights is inconsistent. In traditional halftone dots, the minimum halftone dot size is one dot, but with Flexo Dot, highlight areas feature a somewhat larger minimum halftone dot size consisting of several dots, which makes it possible to create consistent dots in the extreme highlight areas. The minimum halftone dot shape can be selected from a lineup of shapes for each screen ruling, depending on the platemaking and printing environments, to ensure optimal highlight printing. Flexo printing Flexo Dot, which is designed for flexo printing, increases the minimum dot size and applies a reinforcing pattern to the base halftone dot shape. This results in the creation of more consistent relief patterns in the highlight areas. The minimum halftone dot shape can be selected from a lineup of shapes for each screen ruling, depending on the plate thickness, platemaking and printing environments, to ensure optimal highlight printing.



Spekta 2

Letterpress and offset printing

Spekta 2 is a next-generation form of hybrid AM/FM screening that is designed to ma

Flexo digital plates, letterpress digital plates, thermal ablation film

Media sizes Maximum 1,067 u00d7 1,524 mm (42.0" u00d7 60.0");

Minimum 100 x 200 mm (4.0" x 7.9") Maximum 1,067 x 1,200 mm (42.0" x 47.2");

Minimum 100 x 200 mm (4.0" x 7.9")

Media thickness 0.7 to 5.5 mm (27.6 to 216.5 mil)

Resolution 2,400 (2,540) dpi, 4,800 dpi *1

Prouctivity 4 to 6 m2/h (6,200 to 9,300 insq/h) *2

Options -

Weight Main unit: 1,120 kg (2,469 lb), air fi ltering unit 109 kg (239.8 lb),

Blower unit: 85 kg (187 lb)

Power requirements Main unit: Single phase 200 to 240 V, 16 A, 3.2 kW

Air fi ltering unit: Single phase 200 to 240 V, 14 A, 1.8 kW

Blower unit: Single phase 200 to 240 V, 10 A, 1.2 kW

Environment Temperature: 21 to 25u00b0C (69.8 to 77u00b0F) [recommended], Relative humidity: 30 to 71% (no condensation)



Note: Thermal ablation film support is standard with the PlateRite FX1524 and FX1200.

*1 Supported by the standard configuration, but a 4,800 dpi screen must be purchased separately.

*2 Productivity vary slightly depending on media sensitivity.
