UV Exposure machine

Screen plate UV exposure machine is used to make screen plate.With vacuum inspiratory ultraviolet light exposure unit with multi function, itu2019s good for screen plate, thick steel pad plate, thin steel pad plate, resin plate, copper plate, zinc plate and hot stamp plate.

The working principle is to use metal halide UV light for automatic exposure, and transfer picture or text on film to all the above plates.

1)High quality UV lamp can working more than 1000 hours..

2)Reflected cover is made of special anti-aging material, high usage of light source.

3)Automatic time set up, easy to adjust time.

4)Expose time and suction time are adjustable.

5)With protected shading door shutter system for continuous expose.

6)Automatic light source switch, easy operate, so as to extend the lamp lifetime.

7)Soft blanket ensure vacuumize state to wrap the screen frame strictly.

8)High vacuum degree, to achieve screen dot and hachure precision transfer.

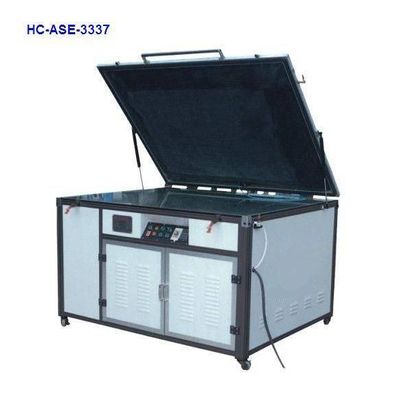

HC-ASE-3337 UV exposure unit

1)Max exposure size: 33.5*37.4 inch (850*950mm)

2)Worktable size: 35.4*39.3 inch (900*1000mm)

3)Max size of screen frame: 31.5*35.4 inch (800*900mm)

4)Light source: Ultra violet halogen lamp

5)Light source power density: 80W/cm

6)Platform glass thickness: 10mm

7)Vacuum degree: 0.05mpa

8)Distance of UV lamp :750mm

9)Air consumption：3.5L/circle

10)Total power: 1KW



HC-ASE-3345 Screen plate UV exposure machine

1)Max exposure size: 37.4* 45.2inch (950*1150mm)

2)Worktable size: 39.3*47.2 inch (1000*1200mm)

3)Max size of screen frame: 35.4* 43.4 inch (900*1100mm)

4)Light source: Ultra violet halogen lamp

5)Light source power density: 80W/cm

6)Platform glass thickness: 10mm

7)Vacuum degree: 0.05mpa

8)Distance of UV lamp :750mm

9)Air consumption：3.5L/circle

10)Total power: 1KW / 3KW



HC-ASE-4557

1)Max exposure size:: 45.2* 57.1inch (1150*1450mm)

2)Worktable size积: 47.2*59.1 inch (1200*1500mm)

3)Max size of screen frame: 43.4* 55.1 inch (1100*1400mm)

4)Light source: Ultra violet halogen lamp

5)Light source power density: 80W/cm

6)Platform glass thickness: 10mm

7)Vacuum degree: 0.05mpa

8)Distance of UV lamp :750mm

9)Air consumption：3.5L/circle

10)Total power: 1KW / 3KW

Power Supply: 220V/110V, 50/60HZ

Standard Certificate: ISO9001-2000

Country of Origin: Guangdong, China

Payment Terms: T.T, PayPal, Western Union or L/C

Lead time: Within 5 days when get buyeru2019s payment or deposit

Shippment: By DHL, FedEx, EMS, UPS, by air or by sea

Guaranty: one year





Packing: by wooden case



HC-ASE-3337

Packing size：1350*1050*1200 mm

Packing volume：1.7CBM

Gross weight：170KG



HC-ASE-3345

Packing size：1400*1600*1200 mm

Packing volume：2.7CBM

Gross weight：190KG



HC-ASE-4557

Packing size：1500*1800*1300 mm

Packing volume：3.5CBM

Gross weight：220KG





Machine Fittings for free:

Operation instruction in English
