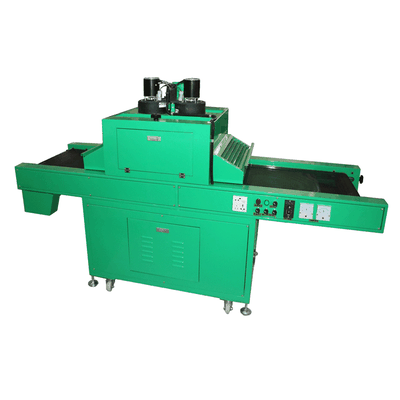

M-50250UVC Spot UV curing machine

Flat UV Drying Machine//Usage and characters

Guide

• UV curing for CD;
  UV curing for Small-dimension Electronic products;
  UV curing for circuit wafer UV gule;
  UV curing for A4 paper;
  UV curing for Inkjet cartridge of printer;
  Test on UV printing Ink.
• Used in the field of post-printing by UV ink. Exposure through UV light onto the film of UV ink to let it dry.
• Drying to UV ink printed onto paper, PVC etc soft and thin substrates;
• Connecting with offset printer to cure UV ink;
• Suitable for Spot UV process with flat vacuum screen printer;
• Curing some soft materials after coating by roller ;
• Entering mouth adjustable make diffrent objects curing;
• Temperature controlled automatically ensure Objects drying on lower temperature

Application fields

• Electron, Hardware, Auto, Toys, Gifts, Plastics parts,
• Plastics products, House appliances, work of art, Stationery, Ornament, cosmetic, sports apparatus .UV drying for UV ink .

Flat UV Drying Machine//Parameter

Technical parameters

M-50250UVC

M-80250UVC

• Conveyer width:500mm;
• Total wattage:9KW;
• Wind fan wattage:200W/380V;
• Conveyer motor wattage:1000W/1P/380V;
• ConveyEr speed:0~10m/min;
• Speed adjustment:Stepless;
• Lamp wattage:4KW/380V×2pcs;
• Max height of production: 80mm.
• Entrance Length: 650mm.
• Drying length: 1200mm.

• Max curing Objects:800×60mm(W×H);
• Total Wattage:9KW;
• Fan Motor Wattage:1000W/380V;
• Transport Motor wattage:1000W/1P/380V;
• Conveyer speed:0~10m/min;
• Speed adjustment mode:stepless;
• Lamp wattage:3KW/380V×2pcs.;
• Max objects height: 80mm

Works supply

• Power: 3 phase 380V.

Package list

Outer Dimension: 2.500×0.560×1.370m;

Net weight: 296KG

Package Dimension: 2.58×0.85×1.35m;

Gross weight: 379KG; CBM:3.364945

Package Dimension: 2.670×1.10×1.420m;

Gross weight: 395KG; CBM:4.17054

H.S.Code

8443198000

Certificate

CE

Flat UV Curing Machine//Advantage

Function

• The conveyer speed can adjustment according to the products drying condition;
• Conveyer belt mabe by teflon materials;
• Famous brand UV lamp installed ;
• Cooling fan installed on the side to remove the heat in curing chamber;
• Worked on Table, save the space;
• Teflon conveyer belt and resist high temperature. function.
• Electrical components and control systems using Famous brand  to ensure stable Curing quality.
