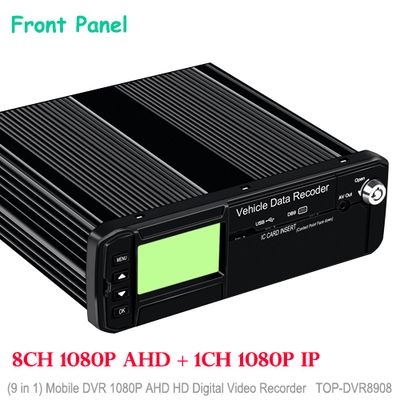

9CH AHD 1080P Mobile Digital Video Recorder with Display Screen (TOP-DVR8908)

. HIS Solution,H.264 Compression Mode, Many stream recording,provide 1080P Million Pixels video recroding effect, Compatible with 9CH Million pixels HD video surveillance/recording/playback (8CH real-time 1080P Million Pixels AHD input or 8CH 720P real-time AHD input / 8CH D1 analog standard definition input) + 1CH 1080P IP Camera input.
. Real-time HD Video Recording, 1080P/720P/D1/HD1/CIF for Optional, Adjustable Frame Rate Quality.
. Professional Power Design for all kinds of Vehicles, 8-36V DC; Wide Voltage, Over-load,Over-voltage,Short Circuit,Reverse Protection,Suitable for all kinds of vehicles.
. Support DC 12V output, it can offer power for cameras,mini monitor and some peripheral device.
. Hard Disk + SD card storage (maximum support 2TB 2.5" hard disk and 128GB SD card), can completely resist data corruption from car vibration, dust or other reasons.
. Watchdog function for abnormal restart, protecting SD card and records.
. Exclusive Pre-Allocate DVR Special File System Technology, Solving repeatedly wipe cause file fragmentation, and ensure the integrity of the data.
. Power-off protection, unique UPS technology protect the integrity of records from emergency accidents. The device even can work 10-15 second when power supply cut off.
. ACC delay off Video Recording Function ( Highest support long delay time 24 hours.)
. Auto Record/Manual Record/Alarm Record etc working mode to meet different requirements.
. Display vehicle traffic status, Vehicle numbers ,Route, Super-low speed vehicle Information, Convenient management.
. Support GPS and G-sensor Modules Extension. 3G/4G SIM CARD Module and WIFI Module(Optional)
. 3channel-RS232 and 2channel-RS485.
. Superior network function, can configure menu through IE, support mobile SMS to configure parameters and obtain device infomation.
. Support Video&Audio monitoring, 2-way Intercom, PTZ control, manually Alarm, Over-speed, Geo Fence etc through remote control platform.
. 16CH alarm inputs (Doors, lights, steering, braking, reversing and all types can be configured), Can support kinds of response linkages. 2CH Analog Alarm inputs -
. 4CH alarm output,Support the linkage acousto-optic alarm, cut off fuel oil/power,etc
. Support Local Auto-photo when alarm input,device pictures preview function.
. Specialized aviation connectors ensuring signal stability.
. User-friendly GUI providing easy and flexible operations.
. Aluminum die-cast chassis with no fan design well adaptable to working environment.
. Powerful function monitor platform, support real-time monitoring, intercom, playback, recording, high definition capture, and more functions.
. Support GPS Signal Uploading Unremitting in 24 hours after Power Off.
. Support SD card Remote Software Upgrade/OTA remote upgrade automatically, partition backup technology upgrade don't crash.
. Support mobile phone remote monitoring and 3G call function.
. Support PTZ/POS/Oil Sensor/LED Advertisement Panel etc.
. Support Build-in TTS Voice Function, Public Bus-stop system (Extensible)
. Support Hard Disk Heater Function - Work Temperature: -30°to 70°
. Can be batch functional customization according to customer's requirements.
