CCTV Video dvr 8ch card support mobile phone remote view

Specifications:



Video Input 8 channels/card

Audio Input No

Display Rate 240 fps (NTSC) 200 fps (PAL)

Recording Rate 240 fps (NTSC) 200 fps (PAL)

Compression Format H.264/MPEG

Compression Spaces Rate 40--180M/h/ch

System Support 32channels/4cards

Alarm Function 8ch input, output/card

Alarm Record Yes

PTZ Control Yes

Operating System Support Windows 2000/XP/VISTA/Win 7/Win 8

Model NO.:JM-9208H

Features:



1 .DirectDrwa video preview technology, H.264/MPEG. video compression algorithm

2. Support mobile phone monitoring. Real-time image monitoring.

3. Support IE browser and client software, and support the CMS software.

4. Single chipset supports for 4 channel video, 4channel audio. Single system supports to 32 channel video.

5.Real-time preview resolution maximum supports to the D1:PAL: 704*576 (D1) NTSC: 704*480 (D1),

Recording resolution CIF: PAL: 352*288(CIF) NTSC: 320*240 (CIF)

6. Be compatible with most Motherboard and graphic card, the compatibility is excellent. For example: the Intel 845, 848, 945, G31, P45 motherboard, the AMD and VIA Motherboard.

7. Network setup is very convenient, and it has the VNN / DDNS function. Don't need to open the ports from Router for WAN.

8.Videos occupy smaller space, 40-180MB on average, and with good video quality. Simultaneously video and audio.

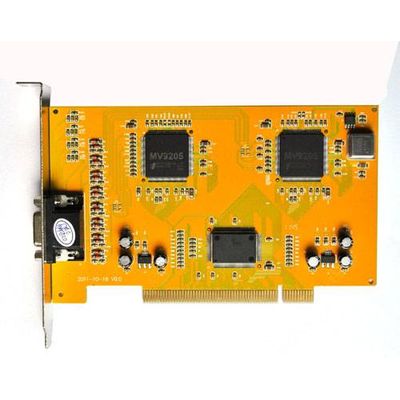

9.Adopt advanced digital image processing technology chips MV9205, 10-bit ADC with 4H comb filter. So the picture is clear and the color is true. The card has very low power consumption, no noise point.

10.Support motion detection, and support high-speed camera's preset and linkage alarm.

11.It adopts MV9205 chips to digitizing the analog video signals. It will be stored in the hard disk after real-time compressing and coding, or through the transmission of computer networks to achieve data sharing. The system can also handle video signal 1-32channels. It is widely used in the field of banking, electricity, telecommunications, water conservancy, intelligent building, home, office ,supermarket, store, and packing lot etc.

12. Software support 8 languages: English, Simplified Chinese, Traditional Chinese(Big5), Portuguese,Spanish,Hebrew,Turkish,French
