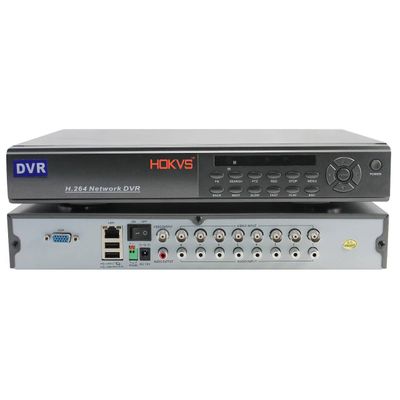

1U H.264 4CH D1 Digital Video Recorder

P2P 8CH Digital Video Recorder



1. Support VGA and CVBS Synchronous Output

2. Support Zoom Any Area Selected By the Mouse under PELCO-D/P PTZ Control Protocol

3. Support One Key to Run Recording Function

4. Support Holiday Recording and Snapshot Setup

5. Support Schedule Snapshot, Manual Snapshot, Alarm Snapshot, FTP Upload Snapshot, Playback and Backup of the Snapshot

6. Support Search, Playback, Backup the Recording According To Events; Support Playback and Search Pictures in Local

7. Support Smart Search in the Self-Defined Areas in the Playback of the Recording

8. Support 2 SATA Ports

9. Support Maximum 8CH CIF Synchronous Playback

10. Support NTP (Internet Timing), DHCP (Automatically Get IP), Email (Mail Service), UPNP (Universal Plug And Play)

Digital Video Recorder

8CH

H.264

Specification

ModelHK-DV8CG

SystemMain ProcessorHigh Performance Embedded Microprocessor / GM8187

Operating SystemEmbedded LINUX Operating System

LanguageEnglish, Simplified Chinese , Traditional Chinese , Brazilian , Russian, Portuguese, Spanish , Italian , Korean , French , Czech , Hebrew , German , Finnish , Bulgarian , Swedish , Romanian , Greek, etc.

System ResourcesPentaplex Function: Live, Recording, Playback, Backup& Remote Access

Control ModeFront Panel, USB Mouse, Network, IR Remote Control

VideoInput8CH, BNC

StandardPAL / NTSC

Output1 TV, BNC, 1 VGA

AudioInput8 CH, RCA

Output1 CH, RCA

DisplayDisplay Split1 / 4 / 8

Resolution1024*768, 800*600

Tour DisplaySupport

OSDCamera Title, Time, Video Loss, Camera Block, Motion Detection, Recording

RecordVideo/Audio CompressionH.264/G711

Image ResolutionD1(704 * 576/704 * 480), HD1(704 * 288/704 * 240), CIF(352 * 288/352 * 240)

Encoding SpeedMain Stream: CH1~3 D1(1~25/30FPS),CH4~8 CIF(1~25/30FPS)

Extra Stream: CIF(1~5FPS),QCIF(1~5fps)

Image Quality1~6 Level (Level 6 Is the Best),VBR Effectively

Record ModeManual, Schedule(Always, Motion Detection, Video Lost, Video Blind, Alarm), Stop

Record Sequence Manual>Alarm>Motion Detection>General

AlarmTriggering EventRecord, Snapshot, Alarm, Email

Motion DetectionArea: 396(22 * 18), Sensitivity: 1-6 Level

Video LossSupport

Alarm InputNot Support

Alarm OutputNot Support

Playback and BackupPlayback Channel1 / 4 / 8

Playback SpeedCIF 200/2400FPS

Search ModeTime/Date, Alarm, Motion Detection & Exact Search(Accurate To Second)

Playback FunctionPlay, Pause, Stop, Fast Play, Slow Play, Full Screen, Backup

Back ModeFlash Drive/USB HDD/CD-DVD RW/Network Download

NetworkInterfaceRJ-45 Port(10/100M)

Network FunctionsTCP/IP, UDP, DHCP, DNS, Ipfilter, PPPOE, DDNS, FTP, Email, UPNP, Alarm Server, ARSP (3G, WIFI optional)

Remote OperationMonitor, PTZ Control, Playback, System Setting, File Download, Log Information

Hard DiskInterface2SATA Port, Each Port Support Max 2TB HDD or 1 DVR-RW

ManagementHard Disk Standby Technology, Hard Disk Failure Alarm

Auxiliary InterfaceUSB Ports2 USB Ports: 1 For Mouse Control, 1 For Backup

RS485PTZ Control

EnvironmentPower SupplyDC 12V, 4A

Environment-10degree ~+55degree /10~90%RH/86~106kpa

Dimension1U, 335mm * 265mm * 55mm (W * D * H)

Weight2.12KG(without HDD)

Widely applied in All Kinds of Projects and Families
