Product Description

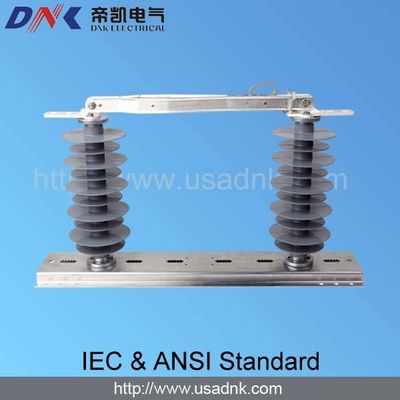

33kV isolator/disconnector is mainly applied in AC10~40.5kV, 50Hz power system. 33kV isolator/disconnector is widely used in electric power, railway, mining and oil field. And all fittings not only reasonably& integrally designed but also made of high quality materials
Product Feature
1. Stainless steel disc spring bowl- It makes two contact parts much more tighten, and supplies very low resistance.
2. Operation pull ring--- The lever design of pull ring and shift lock-pin ensures high breaking ability.
3. Contact methods---using surface contact instead of point contact, the device prevents too large resistance leading to heat too fast, and provides fire protection as well.
Product Specification / Models
Place of Origin: Fujian China (Mainland)
Brand Name: DNK
Model Number: SSOD(SID)
Max. Current: 1250A
Rated voltage: 33kv
BIL:
phase to earth 95kv,125kv
across isolating distance:110kv,145kv
Rated AC voltage withstand:
phase to earth:50kv,60kv
across isolating distance:60kv,70kv
Rated frequency: 50HZ/60HZ
Rated current: 200A,400A,630A,1000A,1250A
Rated short time current withstand: 25KA,20KA 16KA/4S
Mechanical longevity(on/off time): 2000timesAcceptable temperature for operation: -40u00c2u00b0C+50u00c2u00b0C
Insulator creepage-distance: 410MM/680MM
Application / Models
33kV isolator/disconnector is mainly applied in AC10~40.5kV, 50Hz/60Hz power system. It is widely used in electric power, railway, mining and oil field
Other Information
Standard
The design and test of 33kV isolator/disconnector is complied with the following standards:
ISO9001
IEC62271-102
GB/T 11022-1999
GB 1985-2004
GB/T 5582-1993
GB/T 311.2-2002
