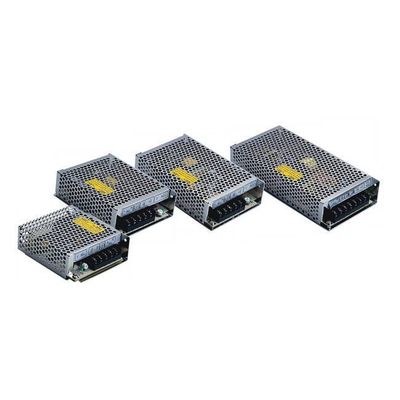

HB switch mode power supply

The switch mode power supply developed our company adopting international high and new technology, which applies to automation fields such as: LED large screen, engineering control equipment, communication equip -

ment, instruments & meters, etc. This series of products is designed according to IEC 950 , UC1950 , UL1012, TUVEN60950,EMC LVD and so on. Employing imported elements, its quality is stable and reliable, and theproducts

are popular throughout the country and far sold to America a nd Europe. Welcome to negotiate and cooperate with us.

AC input voltage 85~132VAC or 170~264VAC (selectable range)

AC input frequency 47~63Hz

Efficiency 25W:71% 50W:75% 100W:79% 200W:81% (Full load for 12V single output type)

Output stability 0.5% typical value

Micro-adjustment range of output voltage u00b110%~15%(For main output circuit)

Ripple and noise 1% peak value (Real measurement value is less than 20 mV)

Over-voltage protection 115%~135% (For main output circuit)

Over-load protection All output terminals have short-circuit protection and overload protection

Withstand voltage Type Between primary

and secondary Between primary

and enclosure Between secondary

and enclosure

TUV 3000VAC 1500 VAC 500 VAC

Others 1500 VAC 1500 VAC 500 VAC

Holding time The typical value is 20ms at full load

Temperature factor 0.02%-0.05%/℃

EMI standard a (FCC) PART 15A, Grade B (b) En55022, CISPR PUB22A, Grade B

Safety standard (a)UL1012(b)EN60950(IEC950,UL1950)

Working environment temperature -10～60 ℃

Storage environment humidity -20 ～+85 ℃

Imported elements, high reliability, built-in filter, low ripple, each article has passed full load and burn - in test, compactness, light weight, inner mounted with inrush current suppressing circuit and output capacitor whose

working temperature is lower than 105℃, it shows high efficiency and long service life, so it is suitable for all-range voltage, short circuit protection, overload protection, over-voltage protection.

Model Power DC output current(A) Outline fig

W 5V 7.5V 12V 13.5V 15V 24V 27V 48V

HB-A15 15 3 1.3 1.0 0.7 001

HB-A25 25 5 2.1 1.7 1.1 001

HB-A35 35 7 3 2.4 1.5 002

HB-A40 40 8 3.5 2.8 1.8 002

HB-A50 50 10 4.2 3.4 2.1 1.80 1.0 003

HB-A60 60 12 8.0 5 4.4 4 2.5 2.2 1.25 003

HB-A100 100 20 13.6 8.5 7.5 6.7 4.5 3.7 2 004

HB-A145 145 25 20 12 10 9 6 5 3 004

HB-A150 150 30 20 12.5 11.2 10 6.5 5.6 3.2 004

HB-A200 200 38 26.5 16.5 14.7 13.3 8.3 7.4 4.2 005

HB-A240 216~240 40 30 18 17 15 10 8 5 005

HB-A320 250~320 48 36 25 22 20 12 11 6 005

HB-A350 320~350 53 40 29 25.8 23.2 15 13 7.5 005

HB-A500 400~500 40 37 20 10 007
