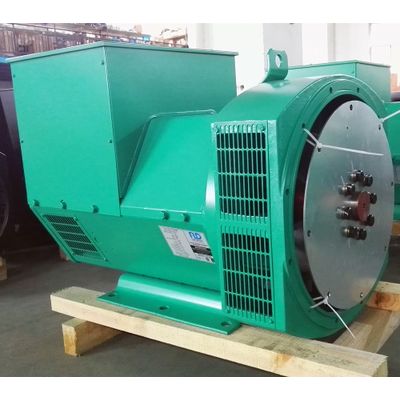

Stamford 100kw AC Three Phase Alternator Replacement

4-Pole Farrand Brushless Alternator Specifications
3 phase H Class Temperture-rise(125°C)    Winding 311
Model
FLD274DL
Power
125kva/ 100kw, 156kva/ 125kw
Exciter type
Shunt self- excited brushless
Power factor
0.8 lagged
Frequency/ Speed
50Hz/ 1500rpm, 60Hz/ 1800rpm
Characters
4 poles, 1 or 2 bearing
A.V.R Model
SX440
With AVR voltage regulation
±1%
Insulation Grade
H
Protection Grade
IP22
THF/TIF
THF≤2%, TIF≤50
Winding Pitch
2/ 3
Terminal
12
Certificate
CE, ISO, etc
Warranty
24 months

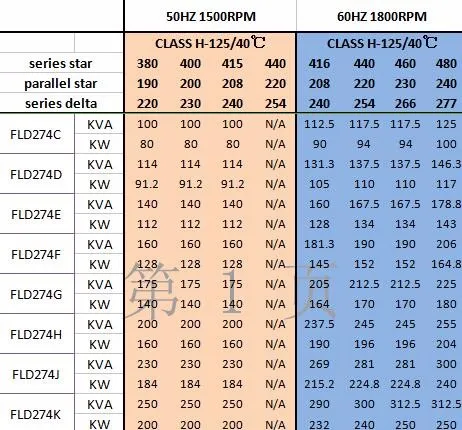

Farrand Generator FLD274 series Main Items

FEATURES

Terminal and terminal box
The three-field alternator had 12 leads brought out to the terminals in the terminal box. The terminals are put on the non-drive end. The box is equipped with removable panels.

Voltage regulation
Voltage regulation refers to the change of voltage from no-load to full-load with power factor ranging from 0.8 to 1 and 3%s fluctuation of the speed of engine. Voltage is adjusted via potentiometer of AVR.

Winding and electric features:
2/3 pitch winding design can effectively eliminate the third harmonic wave(3th.9th,15th) of the voltage. Connected to the network in parallel, the structure can restrain excessive currents in the midline
A continuous damp windings abates surges. The poles and gears of the windings are carefully chosen, this and the 2/3 pitch help to check the wave distortion and output voltage.

Overload

Short time load rating of up to 150% of the rated current in 2 minutes. The alternators can carry a load of 110% for one hour in six.

INSULATION
Insulation Class H.

All wound components parts are all immersed in varnish twice.

Phone interference
THF is less than 2%. TIF is less than 50.

Packaging & Shipping

Shipping the products by sea after receiving the order

Using plywood case packaging

Using packaging film to dust

Our Services

WHY CHOSE FARRAND GENERATOR???

Our advantages
1. Decade of years' experience in manufacturing brushless alternators used for generator& reefer generator
2. Strong QC teams, experienced sales people &skilled workers, professional service
3. 100% tested & guaranteed before shipment to assure the top quality
4. ISO9001:2008, CE certificates
5. Competitive in the market on reliable quality
6. Fast and on time delivery.

7. OEM meet clients' requirements.
