Australian industrial plug and socket N56CSC440 extension socket 3/4/5 round pins passed SAA from 10

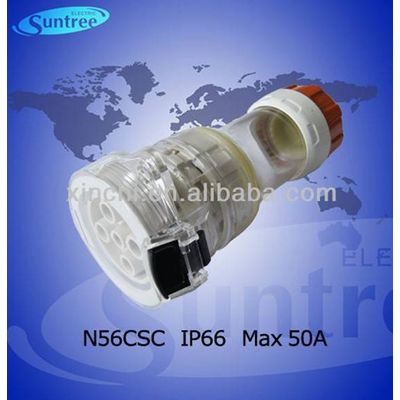

N56CSC extension socket 3/4/5 round pins passed SAA







Application : Dust Resistant, Hoseproof and UV Resistant









Because its tough enclosure casing is dust resistant, hoseproof and UV resistant, the 56 Series is suitable for heavy industrial environments.















The aesthetic appearance of the 56 Series makes it the ideal choice for installation in commercial facilities such as television studios, shopping centres and warehouses.











What's more, 56 Series products are just as acceptable alongside a public or domestic swimming pool.















Materials of 56 series extension socket







1, PVC Solvent Bonding Compatibility











All 56 Series Enclosures are manufactured from robust UV stabilised PVC and can be solvent bonded to standard electrical PVC conduit accessories.







2, Transparent Plastic Materials







The introduction of transparent materials to the 56 Series enables the inspection and checking of the components pin/ socket configuration and wiring at a glance, while still providing protection against the elements



















Standards of 56 series extension sockets :







Pin configurations for plugs, sockets and switched socket outlets comply with AS/NZS3123 and switches with appropriate parts of AS/NZS3947.3 & AS/NZS3133.





Cable Sizes for 56 series:











Rating Cable Entry u00d8 Terminal Capacity

10A to 20A Min 7mm 1mm2

Max 16.4mm 4mm2(QC)6mm2(Screwed)

32A to 50A( small cable seal) Min 9mm 2.5mm2

Max 18mm 6mm2

32A to 50A (Large cable seal) Min 18mm 6mm2

Max 29mm 25mm2











Model Construction:











Model No Description

56CSC310 3Pin 10A250V

56CSC315 3Pin 15A250V

56CSC320 3Pin 20A250V

56CSC332 3Pin 32A250V

56CSC410 4Pin 10A500V

56CSC420 4Pin 20A500V

56CSC432 4Pin 32A500V

56CSC440 4Pin 40A500V

56CSC450 4Pin 50A500V

56CSC510 5Pin 10A500V

56CSC520 5Pin 20A500V

56CSC532 5Pin 32A500V

56CSC540 5Pin 40A500V

56CSC550 5Pin 50A500V
