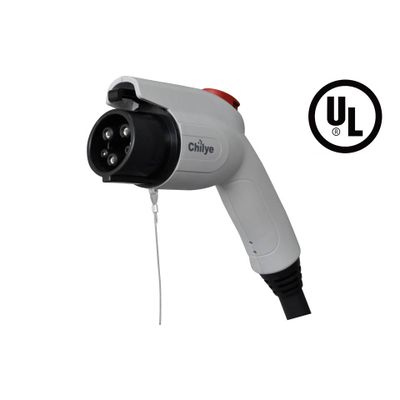

EV charging coupler

The Chilye charge coupler connector comply with SAE J1772, an industry-standard vehicle interface for convenient charging of Plug-in Hybrid Electric Vehicles (PHEV) and Electric Vehicles Supply Equipment (EVSE). Chilye's connector were designed to support Level 1 and Level 2 charging standard of US , JAPAN and also support Level 1 of Europe . The Chilye charge coupler are recognized under the Component Recognition Program of Underwriters Laboratories Inc. Chilye is the only Chinese company obtain UL product certification by now. ( UL Serial Number:E349374)

Product Features:

- Ergonomic handle design, anti-skid, beautiful appearance.

- Connector button have anti-theft lock

- Connector can be still normal use after falling or 1.8 tons of car rolling

- Connector can be extensible design for LED lamp and lighting

- Locking hook can ensure solid and reliable for the charging state connection

- Protection class: over IP 55 (in mated conditions)

- We can according to the customer request develop new product

Electric Performance:

- Rated current: 15A/20A/30A

- Operation voltage:250V AC

Mechanical Properties:

- Mechanical life:no-load plug in/ pull out >10000 cycles

Cabtyre cable:

- Power 2, Ground 1, Signal 2

Environmental Performance:

- Operating temperature:-30~+50
