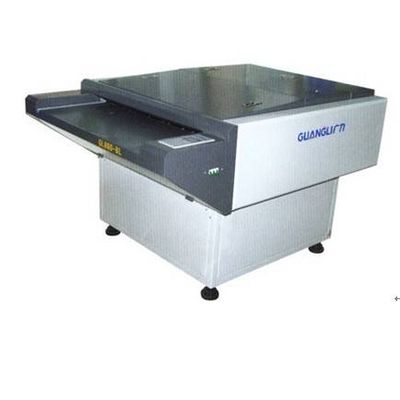

GL 880PS Plate Processor

GL 880PS Plate Processor

*This machine uses all computer control system, straightening-washing ink-water washing-proofing-drying, finished by one time, replace manpower completely,saving manpower, finish working quickly and stabilizationly. It is the perfect machine

*The clean liquid medicines may circulate the use

*Spreads the rubber function and the rubber roll self-cleaning automatically, lengthens the printing plate retention time

*The transmission speed and the hair brush rotational speed may act according to wash the version situation free velocity modulation

*90u00b0right angles and circular arc angle may the automatic justification

*Is suitable in repetition printing, saves the version material and the making lithograph plates time, enhances the working efficiency.

*Automatic saving water and drying, reduces the energy consumption effectively

*The two-sided laundering installment, the page layout is pure

Basic parameters GL880 GL1150

max washing width 880mm 400mm

max washing length 400mm 400mm

washing thickness 0.12-0.4mm 0.12-0.4mm

washing time 15-60s 15-60s

hairbrush rotate speed 0-70r/min 0-70r/min

lotion slot volume 25-30L 25-30L

glue barrel volume 5L 5L

Washing water 10-15L/min 20-25L/min

overall size(not 1600*1210*1100mm 1640*1380*1050mm

contain offset plate)

weight 250kg 350kg

pre-press plate processor
