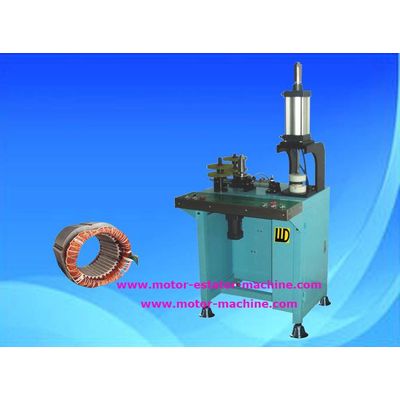

stator coils final forming machine

final hydraulic forming machine is designed to do final forming for the end coils of the stator whose ID is less than 100mm.

1. Polyurethane wheel is used to do expanding shape by rolling, which does not damage the wire.

2. Precise forming tooling works with air press, the formed stator coils is neat and elegant.

3. Machine structure of good design is easy operation and fast working to obtain big output. Furthermore, its tooling change over is convenient.

Stator OD: 60-120mm

Stator ID: 40-100mm

Max stator core length: 40mm

Motor: 90W reduction motor

Cylinder: 100ID x 120 strokes

Air supply: 4-5kg/cm2

Power: AC220V, 50/60Hz

Weight: about 120kgs

Dimensions: 700x590x1520mm

for the fan motor stator
