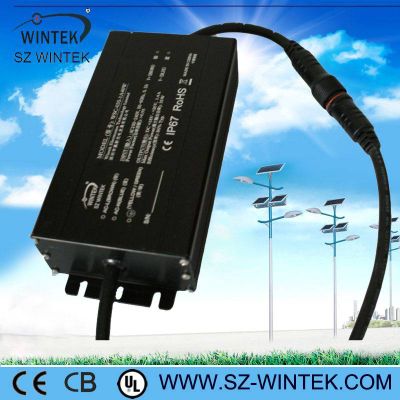

100W waterproof led driver with constant current

Model : WSC-100-A700W Name :100W ac dc led driver with constant current

Features and advantages :

90Vac-264Vac Universal input voltage

single output and constant current

Built-in active PFC function ,PF>0.95

Protected functions:short circuit/over voltage/Over temperature

Cooling by free air convection

Waterproof level : IP67

Warranty : 3 years

90Vac-264Vac Universal input voltage

single output and constant current

Built-in active PFC function ,PF>0.95

Protected functions:short circuit/over voltage/Over temperature

Cooling by free air convection

Waterproof level : IP67

Warranty : 3 years

Model : WSC-100-A700W Name :100W waterproof led driver with constant current

Features and advantages :

90Vac-264Vac Universal input voltage

single output and constant current

Built-in active PFC function ,PF>0.95

Protected functions:short circuit/over voltage/Over temperature

Cooling by free air convection

Waterproof level : IP67

Warranty : 3 years





Power led driver's Speifications :





Model WNP08052LS142

Output DC output 142V

Current range 0.7A

Rated power 100W

Ripple&Noise u00b125%

Current regulation u00b13%

Starting time 3000mS/230Vac, 5000mS/115Vac

Input Voltage range 90Vac-264Vac

Frequency range 47Hz-63Hz

Power factor PF>0.95/230Vac,PF>0.98/115Vac

Efficiency 85%typ @100Vac, 87%typ @220Vac

Inrush current At cold start and 25 deg C,

No damage should occurred and input fuse should not blow-up



Leakage current 0.25mAmax @ 230Vac

Protection Short circuit Output short circuit protection

Protection:Auto recovery after the fault removed

Environment Working temperature&humidity -20u00b0C to +50u00b0C,20%-90%RH,Without condensation

Storage temperature&humidity -30u00b0C to +80u00b0C

Vibration resist 10-500Hz,2G ,X/Y/ZAXIS 60 mintues

Safty&EMC Safety UL8750,GB4943

HI-POT I/P-O/P: 1K5Vac

Insulation resistance I/P-O/P: 100M Ohms/500Vdc

EMI EN55015, GB17743 CLASSB

Harmonic current IEC61000-3-2 Class C compliant

Connection terminals

AC input terminals Silicon rubber cable-Φ7.0mm / Brown L,Blue N, Green G/1mm2

DC output V:Brown V:Blue

Others Dimension 170*80*40mm(L*W*H)

Net weight 1100g

LED street light ,led washer light,led foodlight
