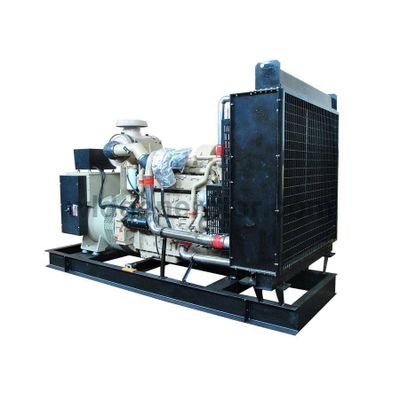

500KVA cummins diesel generator

500KVA cummins diesel generator



Model Number:KTA19-G4

Brand Name: Cummins



Output Type: AC Three Phase

Speed: 1500/1800 rpm

Frequency: 50/60 Hz



Standby Power: 550KVA/440KW

Prime Power: 500KVA/400KW



Rated Voltage: 230V/400V

Fuel cons. 100%: 99.8g/kw.h



Type: 6 cyclinder in line

Type of Governor: Electronic governor



Dimension: 3560u00d71345u00d71965mm

Bore u00d7 Stroke: 159/159mm



Base Fuel Tank: Eight hours(Standard)

Standards: JB/T 1403-1999, GB/T 12501-1990

Warranty: 1 Year or 1500 running hours



Weight: 4100.00kg

Place of origin: Guangdong, China (Mainland)

Engine Features:







Super power, PT fuel system, ultra-high injection pressure, sufficient combustion, low fuel consumption and good economic performance

Replaceable wet cylinder sleeves, effective cooling system, good spare parts commonality, high product serialization, easy maintenance and low failure.

High-strength alloy cast iron with good rigidity, small vibration, low noise, good reliability and durability

Professional configuration,best quality,mature product, global reputation, and wide industry application

Electric controlled high-pressure fuel system to make sure full fuel combustion,low consumption, and engine in the best running status.

High-pressure fuel system, even fuel injection, able to reduce the loss of additional power

Place of origin Guangdong, China (Mainland)

Brand Name Cummins

Model Number KTA19-G4

Output Type AC Three Phase

Speed 1500/1800 rpm

Frequency 50/60 Hz

Standby Power 550KVA/440KW

Prime Power 500KVA/400KW

Rated Voltage 230V/400V

Type 6 cyclinder in line

Fuel Consumption 100%(L/H) 99.8

Type of Governor Electronic governor

Dimension(mm) 3560*1345*1965

Weight(kg) 4100

Bore * Stroke(mm) 159/159

Base Fuel Tank Eight hours(Standard)

Standards JB/T 1403-1999, GB/T 12501-1990

Warranty 1 Year or 1500 running hours







Payment & Shipping Terms:







Minimum Order Quantity: 1 Set

Port: Huangpu port,Guangzhou

Packaging Details: Standard export package

Delivery Time: 5-10 working days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 300 sets per month

Alternator Features:







Brand Stamford, Simens, Marathon, Farady at option

AVR model R448 V50

Number of phase 3

Power factor (Cos Phi) 0.8

Altitude ≤ 1000 m

Overspeed 2250RPM

Number of Pole 4

Exciter type AREP

Insulation class H

Voltage regulation u00b10.5%

Sustained short circuit current 300% (3 IN) : 10s

Total harmonics (TGH/THC) < 3.5 %

Wave form NEMA = TIF < 50

Wave form I.E.C. = THF < 2%

Bearing single

Coupling Direct







Control system:







Automatic alarm system: the unit has the acousto-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current

Operation display:

Unit voltage, tri-phase load current and frequency display

Water temperature, oil pressure display

Fuel level, fuel temperature display

Audible and visual alarm lamps and buzzers

Starting system: DC alternator is used to start engine

Short circuit protection: MCCB air switch

Cooling system: combined cooling water tank fitted to meet the requirement of radiation at ambient temperature 40u00b0C

Filter system: oil, fuel and air filter

Accessories: exhaust elbow, bellow, muffler

Detailed Product Description:







Cummins-As the world's largest independent engine manufacturer,Cummins Inc. was founded in 1919 and headquartered in Columbus,USA. Its product line includes diesel and alternative fuel engines. Cummins provides services to clients through its over 500 distribution agencies in 190 countries and territories with the 5200 dealers
