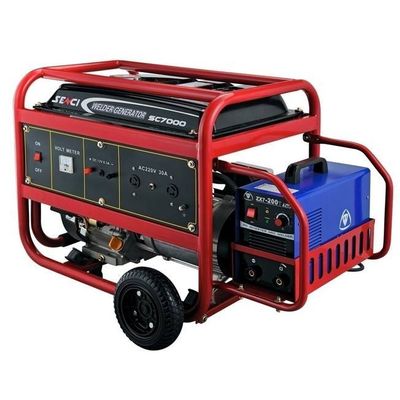

welding generator SC7000T

Engine: SC190F(14HP)

Starting System: Recoil/E-start

Displacement: 420cc

Compression Ratio: 8.0:1

Non-load Voltage: 65v

Current Regulation Range: 50-200A

Rated Load Voltage: 21-26V

Rated Output & Rated Duty Cycle: 35%(100/24)/60%(90/23)

Welding Rod Diameter(mm): 1.5-4.0

Generator Rated Power: 6KW

Max. Power: 6.5KW

Rated Voltage: 230V

Fuel Tank Capacity: 25L

Power Factor: 1

Dimension: 620*490*510mm

Net Weight: 110KG

Loading Qty(20GP/40GP/40HQ): 160/344/430

1.Coupled with superior quality Senci alternator

2.Powered by easy-to start Senci single cylinder gasoline engine

3.One unit,dual function,welding & generating,more economical for on-site lighting and electric tools.

4.Welding current regulations is wide enough to suit most of welding rods.

5.Super smooth welding arc gets perfect welding quality in all kinds of the applications.

6.Used where altitude up to 3500m under temperature -20~50

7.Portable compact and small sized design with open rugged and durable frame,easy to operate

8.Circuit breaker,cuts off electricity system when overloaded

9.Muffler with spark arrestor,lower noise more.

10.AVR(automatic voltage regulator),stabilizes the output power.
