EV10i-LPG generator

Min. Order: 1
Payment: T/T, L/C
Minimum Order: 10PCS
Delivery: 30 Days
Origin: Fuan
Packing: Carton
Inspection: -
Samples: Charge
Sample Price: $320.00
Contact Supplier

Favorite

Inquiry Basket

Product Attributes
Company Profile
Logistics and other information
    Product Details

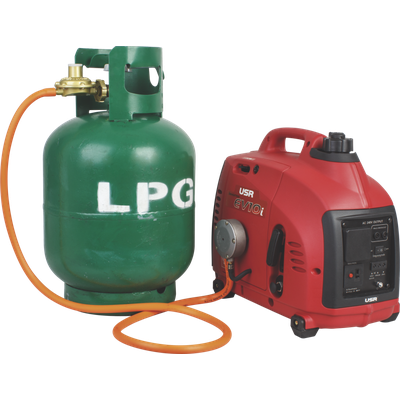

    EV10i-LPG

    LPG Generator

    1) 15% larger fuel capacity reaches 3.0L. By using innovative variable-frequency technology, the fuel consumption will reduce 10%, and running hours increase 20%, Comparing with other similar variable-frequency generators. Only economy and durability are the top priority.

    2) The whole control units are integrated in same side, so as to simplify the operation procedures, as well as to avoid any faulty handling.

    3) Smart and portable generator is only 13.8kg lightweight, which can be handled by one hand.

    4) 2kW AC Output will be extremely stable, and will not be reduced after long running.

    5) Circuit can be inspected in the site of connector panel. Due to the most convenient removal and assembly structure, any part of the generator can be reached within 8 minutes, which lowers the technology requirement to daily use and repair, as well as reducing the maintenance cost and time.

    6) Enclosed structure with fewer holes on body cover, will not only improve the strength of body cover, but also reduce noise leakage. (Patented technology)

    7) Innovation creates value. With independent intellectual property rights, ELP product is featured in design of dual fans, dual air ducts, dual mufflers and double-layer acoustic hood, as a result, to ensure the ultra low noise (only 53-59 dbA/7m) not to affect other surrounding people in densely-inhabited district, to guarantee the generator in long-term and stable running in even 45°C high-temperature environment, and further to assure the long service life of generator. (Patented technology)

    8) Unique dual-duct design to ensure the cooling efficiency and to isolate noise leakage from intake air duct. (Patented technology)



    Model

    EV20i

    Engine

    4-stroke, OHV single cylinder

    Displacement

    105cc

    Compression

    7.5:1

    Rated rev

    5000r/min

    Ignition system

    Non-contract transistorized ignition

    Start system

    Recoil hand-operated

    Fuel tank capacity

    1.06Gallon (4L)

    Fuel

    Unleaded gasoline

    Oil capacity

    0.106 Gallon(0.4L)

    Oil

    SF or higher grad

    Rated AC frequency

    50Hz

    60Hz

    60Hz

    Rated AC voltage

    230V

    120V

    240V

    Rated AC current

    8.3A

    16.5A

    8.3A

    Rated AC output

    1800VA

    surge AC output

    2,000VA

    DC output

    12V 8.3A

    Total Harmonic Distortion

    ≤3%

    Power factor cos

    1

    Frequency stability

    ±0.1Hz

    Voltage stability

    ±4V

    operating Noise Level

    58dB(7m)

    Continuous Operation at ? Rated Load

    6.5h

    Dry weight

    46lbs
