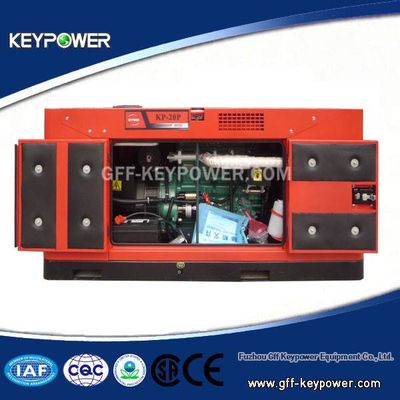

KEYPOWER 2015 100KVA silent diesel engine generator portable manufacturer

Features:



Rated output: 8 -800kW / 10kVA 1000KVA

Rated voltage: 400 / 230V, 380 / 220, 220 / 110, etc.

Rated frequency: 50 / 60Hz

Power factor: 0.8



Engine:

Rated power: Cumminsor Deutz or Doosan or Perkins(LOVOL) or other China engine

Cooling method: closed water cooling or air force cooled

Starting method: electric start

Rated speed: 1, 500 / 1, 800rpm

Alternator:

Brand: Stamford or Leroysomer or our KP series brushless

Rated output: 8 - 1000kW / 10kVA - 1250kVA

Rated voltage: 400 / 230V, 380 / 220, 220 / 110, etc

Rated Frequency: 50 / 60Hz

Power factor: 0.8

Phase: 3-phase, 4-wire

Connection: Y or other type connection

Rated speed: 1, 500rpm / 1, 800rpm

Excitation: harmonic excitation or phase compound or brushless

Voltage regulation: AVR automatic

Diesel generator Specifications

1. Powered by reliable engines

2. Branded alternator

3. Open type, silent type or super silent type generator

4. ISO, CE certified







Generator specs:

Rated output: 2 to 2,000kW/2 to 2,500kVA

Rated voltage: L-N 110 to 277V, L-L 220 to 480V

Rated frequency: 50/60Hz

Cooling method: closed water-cooled or air-cooled

Starting method: electric start or recoil start

Rated speed: 1,500/1,800/3,000/3,600rpm

Noise level: 56 to 75dB, 7 meters away







Alternator:

Brands: Stamford, Leroy Somer, Mecc Alte and Keypower brushless alternator

Rated output: 8 to 2,000kW/10 to 2,500kVA

Rated voltage: L-N 110 to 277V, L-L 220 to 480V

Rated frequency: 50/60Hz

Phase: 3-phase, 4-wire or 1-phase, 2-wire

Connection: y or other type connection

Rated speed: 1,500/1,800rpm

Excitation: harmonic excitation or phase compound or brushless

Voltage regulation: AVR automatic

1.0% voltage regulation in static conditions (maximum)

Protection class: IP23

Control panel: Deepsea, ComAp, Keypower







The panel is provided with:

Standard engine instrumentation

Voltmeter with selector switch

Ammeter with selector switch

Frequency meter

Current transformers

MCB of suitable rating with overload and short-circuit protection

Optional with AMF control panel or with ATS (automatic transfer switch)
